| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

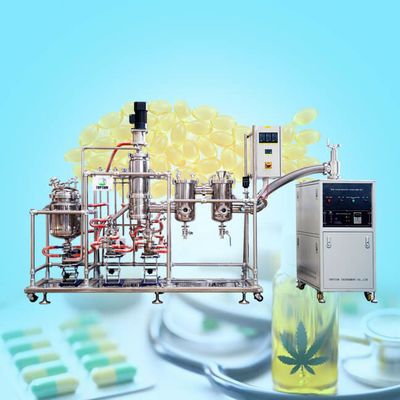

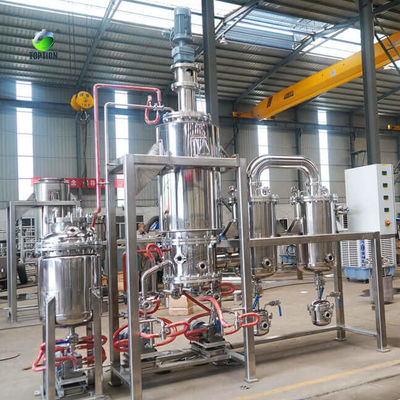

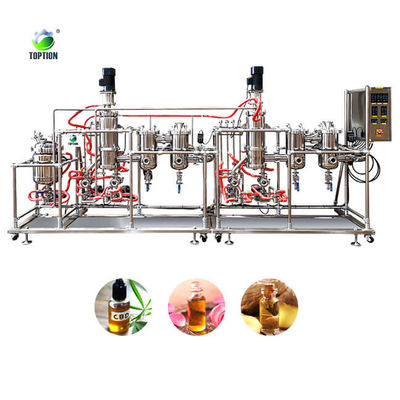

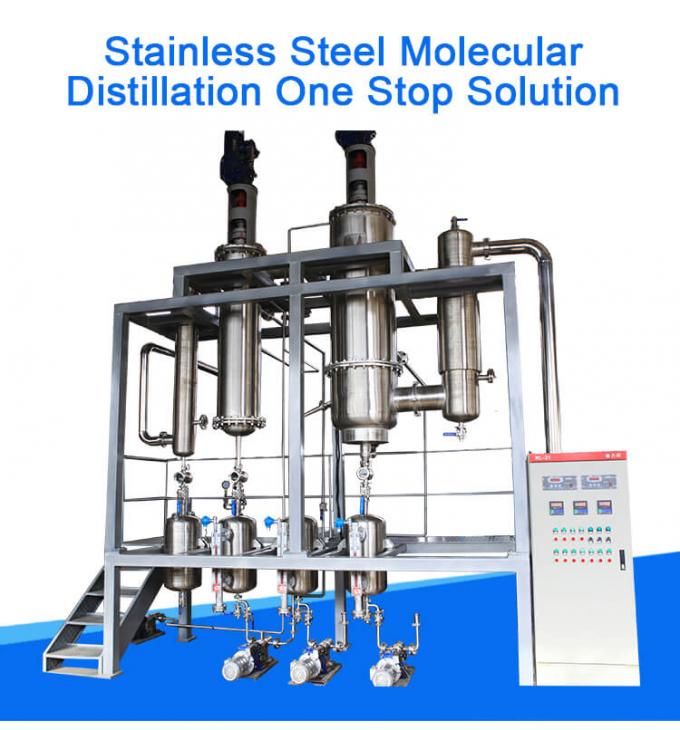

MDS-30CE stainless steel molecular distillation equipment is professional customized by our USA customer for plant oil extraction, used together with 100L rotary evaporator, which is an economical solvent removing method, one stop solution of distillation, extraction, concentration, etc.

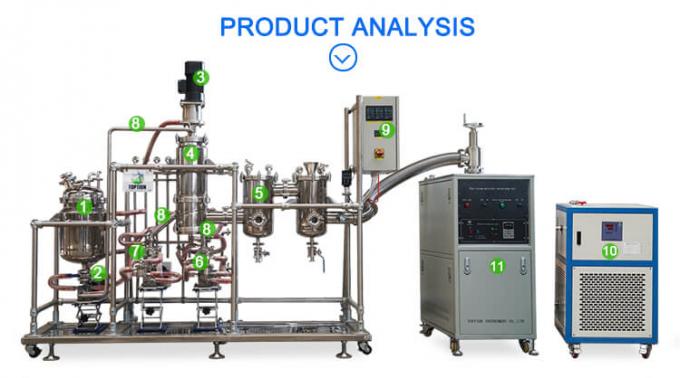

Technical parameters of MDS-30CE molecular distillation equipment
|
Model |
MDS-30C short path molecular distillation plant |
|
Material tank |
30L jacketed tank |
|
2 sight glass at top, with insulated ball valve. |
|
|
Material charging |

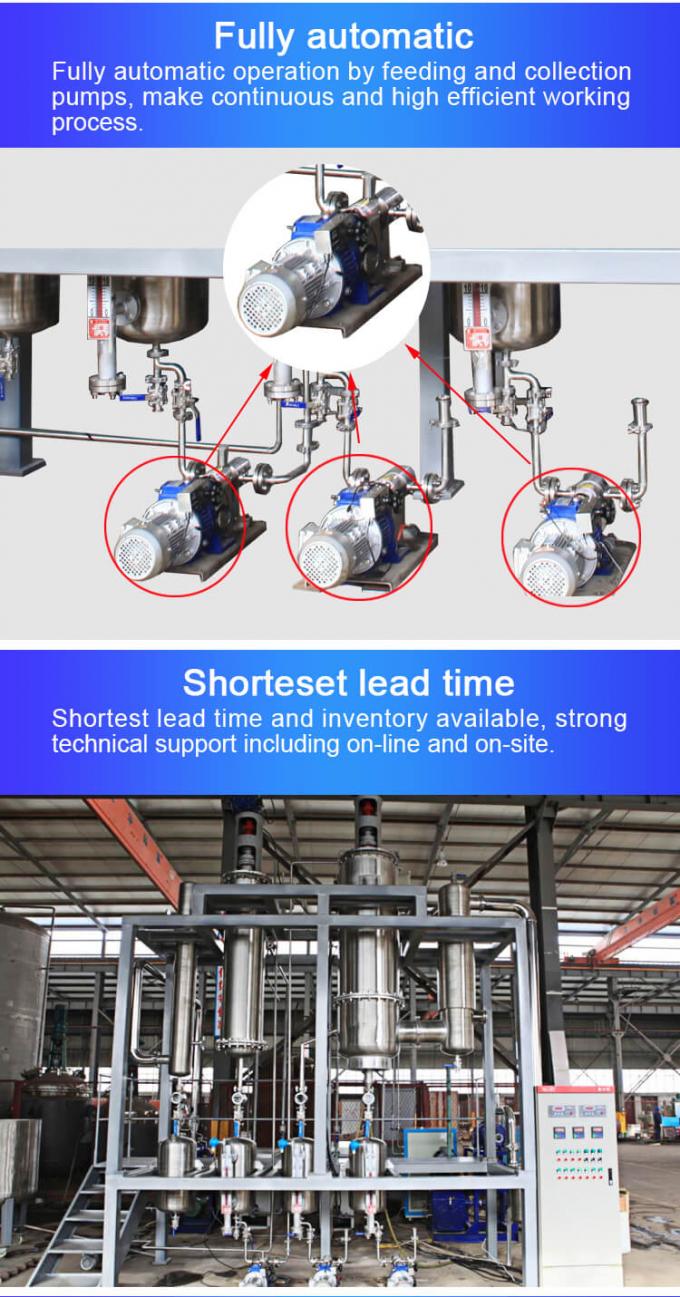

Gear pump |
|
Flow 5L～30L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Evaporator |
Evaporation area 0.2㎡ |
|
Film forming way: scraper (roller is optional) |
|
|

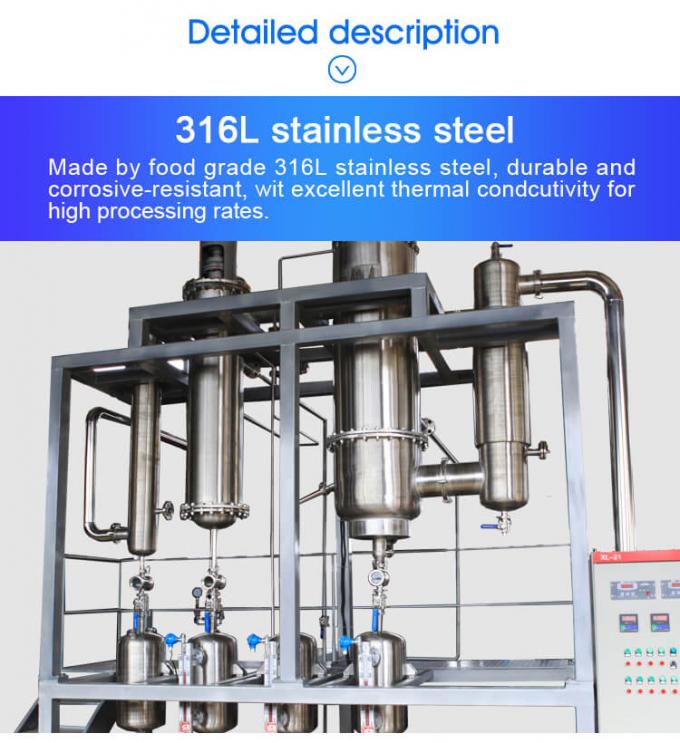

Material: 316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor: 370W, mechanical constantly variable transmission, 200～1000rpm/min |
|
|

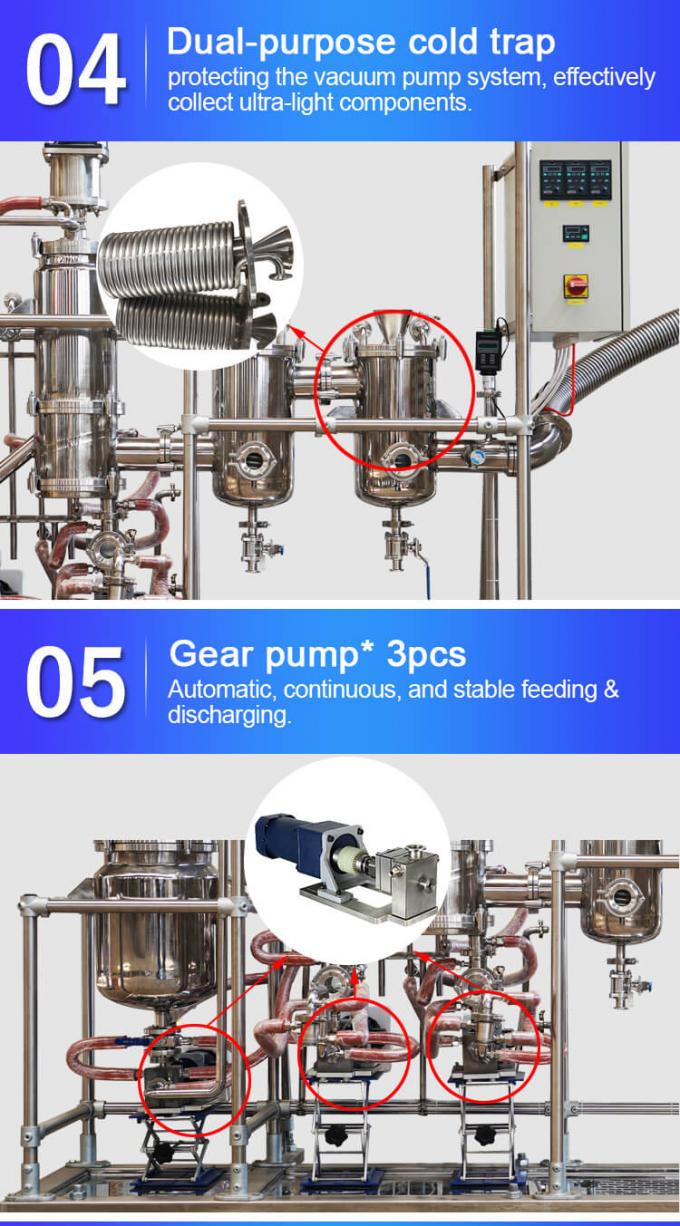

Cold trap |
1. 1㎡chiller cooling cold trap |
|
2. 3L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose). |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 5L～15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Lighter component discharge |
Gear pump |
|
Flow 5L～25L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Material pipeline |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |

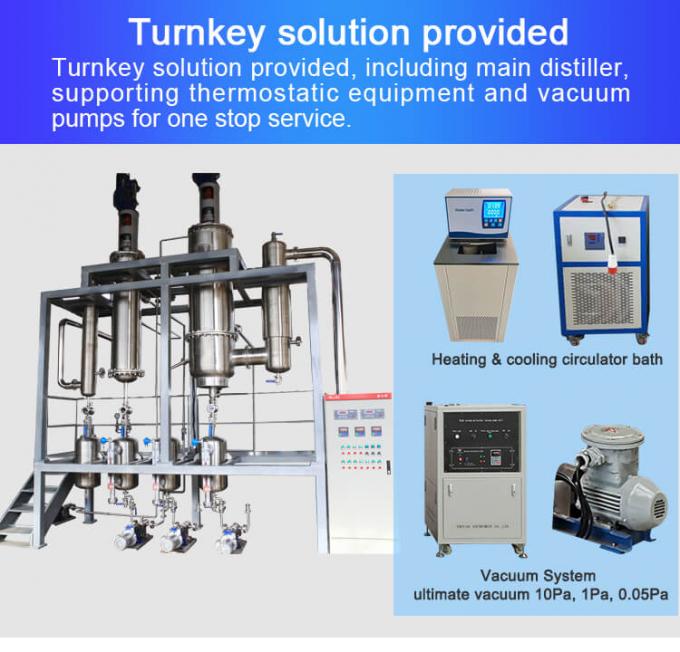

All equipment include molecular distillation machine, wiped film evaporator, rotary evaporator, vacuum pump, heating & cooling circulators bath, through CE certification, ISO approved, with more than 15 years manufacturing experience, guarantee professional customize & reliable quality, welcome contact info@toption-china.com consult our engineers now.
TOPTION molecular distillation machine support professional customize

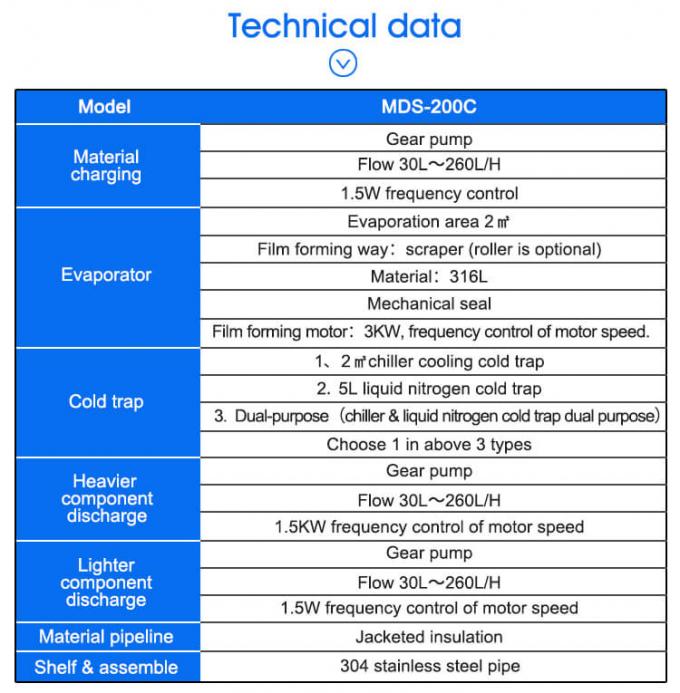

Technical parameters of industry molecular distillation equipment
|
Model |
MDS-200C industry molecular distillation equipment |
|
Material charging |
Gear pump |
|
Flow 30L～260L/H |
|
|
1.5W frequency control |
|
|
Evaporator |
Evaporation area 2㎡ |
|
Film forming way: scraper (roller is optional) |
|
|
Material: 316L |
|
|
Mechanical seal |
|
|
Film forming motor: 3KW, frequency control of motor speed. |
|
|
Cold trap |
1. 2㎡chiller cooling cold trap |
|
2. 5L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose). |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 30L～260L/H |
|
|
1.5KW frequency control of motor speed |
|
|
Lighter component discharge |
Gear pump |
|
Flow 30L～260L/H |
|
|
1.5W frequency control of motor speed |
|
|
Material pipeline |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |

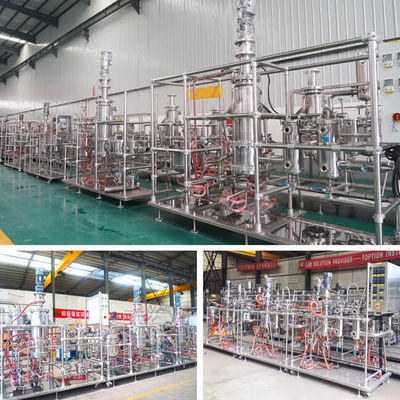

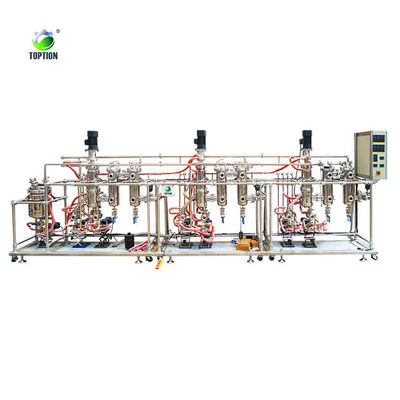

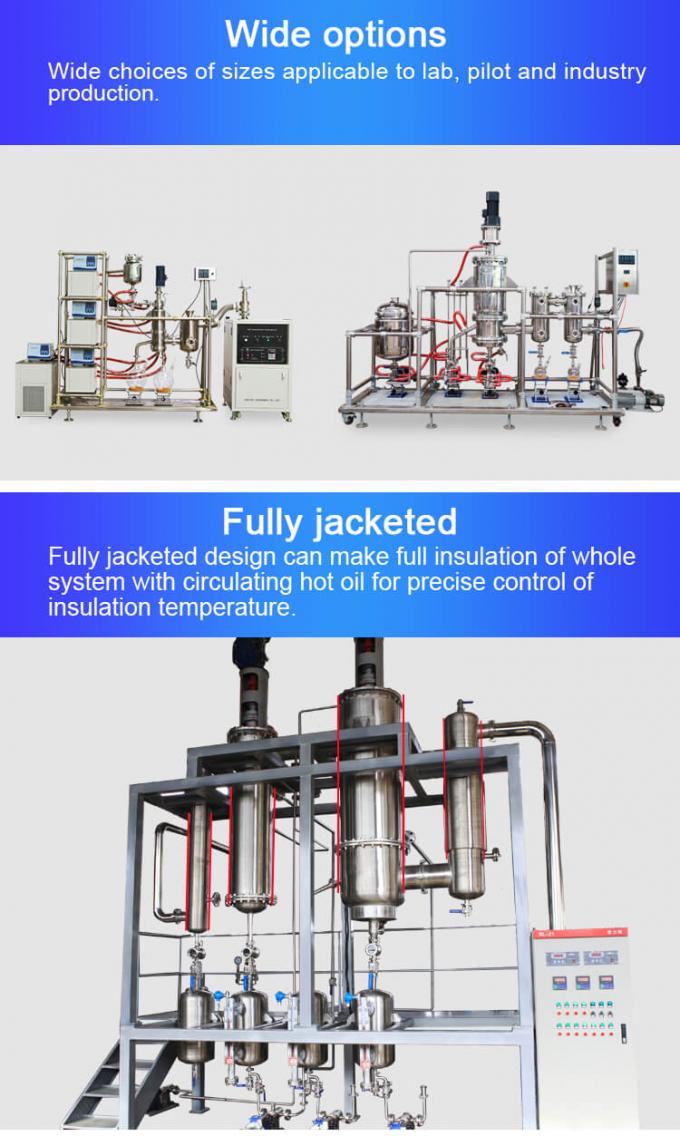

LAB – PILOT- INDUSTRY type molecular distillation equipment wide capacity range optional, contact info@toption-china.com now for free consult.
|
|
