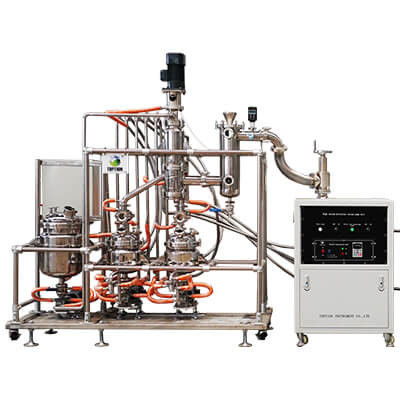

CE ISO Wiped Film Evaporator TOPTION Essential Oil Distiller Machine

Detail Information Place of Origin China Brand Name TOPTION Control System: PLC/Touch Screen Film System: Wiped Filming System Material: Stainless Steel Operation Mode: Continuous/Intermittent Safety Protection: Overload Protection/Overheating…

Wiped Film Evaporator

Product Information

Detail Information

Place of Origin China
Brand Name TOPTION
Control System: PLC/Touch Screen
Film System: Wiped Filming System
Material: Stainless Steel
Operation Mode: Continuous/Intermittent
Safety Protection: Overload Protection/Overheating Protection
Type: Molecular Distillation Equipment
Voltage: 220V -60hz
Price: Negotiable
Delivery Time: 15-20 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment,
Highlight: iso wiped film evaporator , wiped film evaporator toption , ce molecular distillation equipment
Product Description
    •

      MDS-10C cbd oil extraction machine

      TOPTION brand molecular distillation equipment is made of stainless steel material, with excellent thermal conductivity, guarantee extraction efficient is 1.4 times higher. Want to do cbd oil extraction, this set will be your TOP OPTION and the safest mode.

      molecular distillation equipment structure



      molecular distillation equipment structure

      Main features of stainless steel short path molecular distillation equipment

      1. Made by high quality 316L stainless steel, durable and corrosive-resistant, with excellent thermal conductivity for high processing rates.

      2. Wide choices of sizes applicable to lab, pilot and industrial production.

      3. Fully jacketed design can make full insulation of whole system with circulating hot oil for precise control of insulation temperature.

      4. Fully automatic operation by feeding and collection pumps make continuous and high efficient working process.

      5. Turnkey solution provided ( include main distiller, support thermostatic equipment and vacuum pumps) for one stop solution of cbd oil distillation.

      6. Shortest lead time and inventory available, quality manufacture 15 years, strong technical support on-line & on-site.

      7. CE certification, ISO approved, reliable quality to be your TOP OPTION in cbd oil business.

      molecular distillation



      molecular distillation machine
      MDS-10CE molecular distillation
      molecular distillation machine
      2 stages molecular distillation equipment



      3 stages short path distillation

      Technical parameters of MDS-10C cbd oil extraction machine

      molecular distillation equipment

      MDS-10C cbd oil extraction machine

      Material tank

      Upgrade15L jacketed stainless steel tank

      2 sight glass at top, with insulated ball valve.

      Material charging

      Gear pump

      Flow 3L~15L/H

      200W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.1㎡

      Film forming way: scraper (roller is optional)

      Material:316L

      Mechanical seal (Magnetic seal is optional)

      Film forming motor:370W, mechanical   constantly variable transmission,200~1000rpm/min

      Cold trap

      1.    0.4㎡chiller cooling cold trap

      2.    3L liquid nitrogen cold trap

      3.    Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)

      Choose 1 in above 3 types

      Heavier component discharge

      Gear pump

      Flow 3L~15L/H

      200W motor, electronic speed regulation.

      Lighter component discharge

      Gear pump

      Flow 3L~15L/H

      200W motor, electronic speed regulation.

      Material pipeline

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      Vacuum pump of molecular distillation machine
      temperature control system of molecular distillation equipment

      CE certification of molecular distillation equipment, heating & cooling temperature control system, vacuum pump. ISO approved, 15 years quality manufacturing, reliable quality guarantee.

      molecular distillation equipment certification

      TOPTION molecular distillation equipment factory show, quality is our culture

      molecular distillation equipment factory



      vacuum distillation equipment factory



      vacuum distillation equipment factory



      molecular distillation equipment

      Welcome contact info@toption-china.com  for professional customize, support overseas installation service, also welcome factory visit in China.

      MDS-300CE wiped film evaporator




      vacuum distillation equipment supplier
