Compared with glass short path distillation set, most customers prefer to choose stainless steel material type molecular distillation equipment, not only as stainless steel material’ durable and corrosive-resistant excellent performance, also as it’s 1.4 times higher extraction efficient, save cost & time.
Molecular distillation equipment is considered as the safest mode to extract rose essence oil, clove oil, ginger oil, angelica oil, orange peel oil, artemisia argyi oil, folium isatidis oil, fennel oil, and remove the reagent residue of the nourishing oil.
Technical parameters of distiller for essential oil
|
Molecular distillation equipment |
MDS-6A distiller for essential oil |
|
Material tank |
1L jacketed glass tank |
|
Material charging |
Differential pressure PTFE valve. |
|
Feed rate 0.5L～3L/H |
|
|
Evaporator |
Evaporation area 0.06㎡ |
|
Film forming way:scraper (roller is optional) |
|
|
Material: 316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor: 200W motor, electronic speed regulation. |
|
|
Cold trap |
1. 0.2㎡chiller cooling cold trap |
|
2. 1L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose). |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
29# Grinding mouth adapter |
|
5L glass bottle 1pcs, bottle holder 1pcs |
|
|
Lifting table 1pcs |
|
|
Lighter component discharge |
29# Grinding mouth adapter |
|
5L glass bottle 1pcs, bottle holder 1pcs |
|
|
Lifting table 1 pcs |
|
|
Material pipeline |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
1. Wide choices of sizeds applicable to lab, pilot and industrial production.
2. Fully jacketed design can make full insulation of whole system with circulating hot oil for precise control of insulation temperature.
3. Fully automatic operation by feeding and collection pumps make continuous and high efficient working process.
4. Turnkey solution provided ( include main ditiller, support thermostatic equipment and vacuum pumps) for one stop solution of cbd oil distillation.
5. Shortest lead time and inventory available, quality manufacture 15 years, strong technical support on-line & on-site.
6. CE certification, ISO approved, reliable quality to be your TOP OPTION in cbd oil business.
TOPTION factory show, the quality you can check, welcome factory visit contact info@toption-china.com

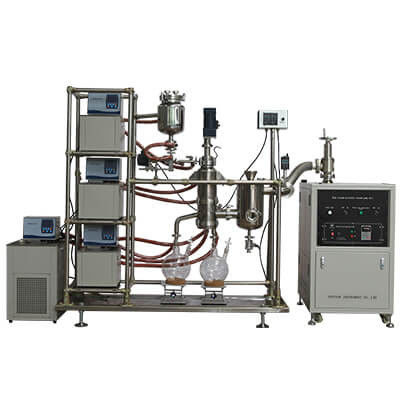

Molecular distillation equipment showed in below picture is MDS-10C distillation unit and MDS-10C 2 stages molecular distillation equipment.
|
|
