| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

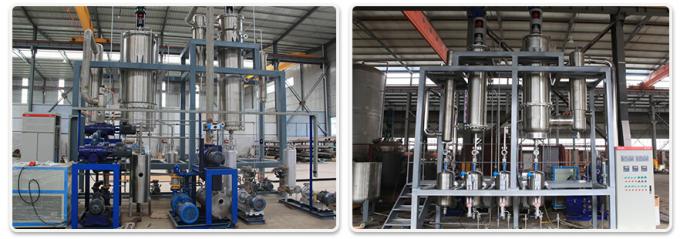

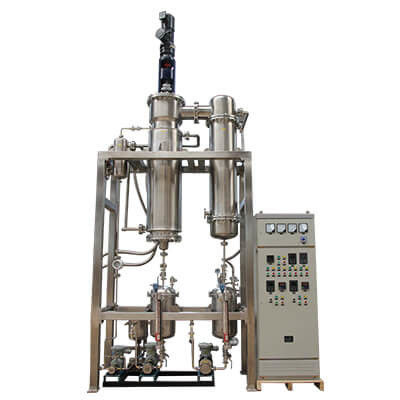

Wiped film evaporator is widely used to evaporate, condense, decolor, trip, react, degas, deodorant the materials with high heating-sensitive and easy to oxidate.
Technical parameters of thin film evaporator
|
Main body |
Model |
PWFS-1C |
PWFS-2C |
|
Material tank |
Customer’s own storage tank |
Customer’s own storage tank |
|
|
Material charging |
Gear pump |
Gear pump |
|
|
Flow 30L～200L/H |
Flow 30L～260L/H |
||
|
750W frequency control |
1.5KW frequency control |
||
|
Evaporator |
Evaporation area 1㎡ |
Evaporation area 2㎡ |
|
|
Film forming way: scraper (roller is optional) |
Film forming way: scraper (roller is optional) |
||
|
Material: 316L |
Material:316L |
||
|
Mechanical seal |
Mechanical seal |
||
|
Film forming motor:3KW, frequency control |
Film forming motor:3KW, frequency control |
||
|
Cold trap |
5㎡tube nest |
5㎡tube nest |
|
|
Heavier component discharge |
Gear pump |
Gear pump |
|
|
Flow 30L～200L/H |
Flow 30L～260L/H |
||
|
750W frequency control |
1.5KW frequency control |
||
|
Lighter component discharge |
Gear pump |
Gear pump |
|
|
Flow 30L～200L/H |
Flow 30L～260L/H |
||
|
750W frequency control |
1.5KW frequency control |
||
|
Material pipeline |
Jacketed insulation |
Jacketed insulation |
|
|
Shelf & assemble |
304 stainless steel pipe |
304 stainless steel pipe |
|
|
Accessory |
Vacuum |
Water jet pump TL-40,Large square water pump |
Water jet pump TL-40,Large square water pump |
|
Main evaporator heating |
200℃/25KW |
200℃/38KW |
|
|
Raw material section insulation |
1. 200℃/5.5KW |
1. 200℃/5.5KW |
|
|
External condenser cooling |
1. Circulating water , low cost |
1. Circulating water, low cost |
|
|
2. Industrial chiller FL-3500 |
2. Industrial chiller FL-5000 |
Capacity range of wiped film evaporator vacuum distillation equipment
| Model | Evaporator Area(㎡) | Height(mm) | Capacity (L/H) |
| PWFS -0.1 | 0.1 | 1200 | 2-10 |
| PWFS -0.2 | 0.2 | 1580 | 10-20 |
| PWFS -0.3 | 0.3 | 1980 | 15-30 |
| PWFS -0.5 | 0.5 | 2750 | 20-50 |
| PWFS -1.0 | 1.0 | 3350 | 50-100 |
| PWFS -2.0 | 2.0 | 4320 | 100-200 |
| PWFS -3.0 | 3.0 | 5100 | 100-300 |
| PWFS -4.0 | 4.0 | 5600 | 120-350 |
| PWFS -5.0 | 5.0 | 6000 | 150-405 |
| PWFS -6.0 | 6.0 | 6500 | 180-550 |
| PWFS -8.0 | 8.0 | 7230 | 250-750 |
| PWFS -10 | 10 | 7350 | 300-950 |
Please contact info@toption-china.com for detail wiped film distillation equipment information, we will reply you within 4 hours.
TOPTION wiped film evaporator is also called thin film evaporator, which is used to evaporate, condense, decolor, trip, react, degas, deodorant the materials with high heating-sensitive and easy to oxidate.
Wiped film distillation is an excellent method for gently thermal treatment of heat sensitive, high boiling products. At present, there are hundreds of products used in thin film evaporator.

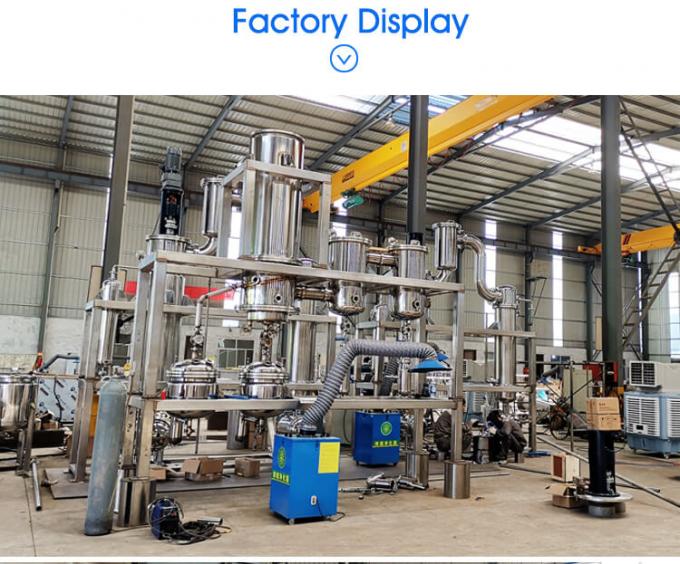

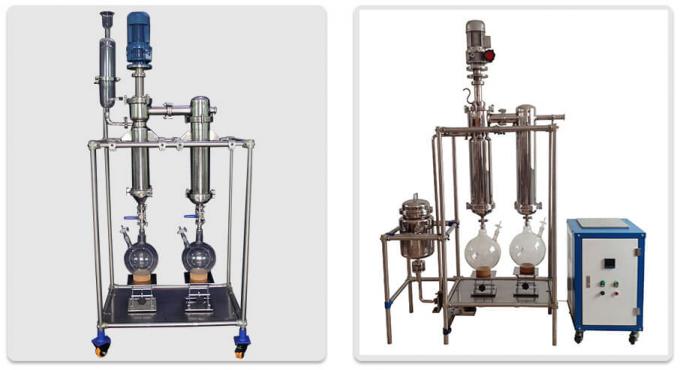

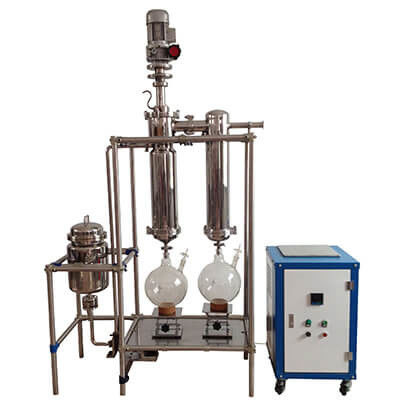

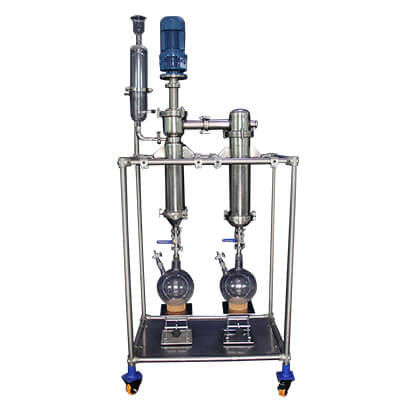

Technical parameters of wiped film evaporator vacuum distillation equipment:
|
Main body |
Model |
PWFS-0.1C |
PWFS-0.1B |
PWFS-0.1A |
|
Material tank |
15L jacketed tank |
15L jacketed tank |
5L jacketed tank |
|
|
2 sight glass at top, with insulated ball valve. |
2 sight glass at top, with insulated ball valve. |
2 sight glass at top |
||
|
Material charging |
Gear pump |
Gear pump |
Manual valve feed |
|
|
Flow 3L～15L/H |
Flow 3L～15L/H |
|
||
|
200W motor, electronic speed regulation. |
200W motor, electronic speed regulation. |
|
||
|
Evaporator |
Evaporation area 0.1㎡ |
Evaporation area 0.1㎡ |
Evaporation area 0.1㎡ |
|
|
Film forming way: scraper (roller is optional) |
Film forming way: scraper (roller is optional) |
Film forming way: scraper (roller is optional) |
||
|
Material: 316L |
Material: 316L |
Material: 316L |
||
|
Mechanical seal (Magnetic seal is optional) |
Mechanical seal (Magnetic seal is optional) |
Mechanical seal (Magnetic seal is optional) |
||
|
Film forming motor: 370W, mechanical constantly variable transmission,200～1000 rpm/min |
Film forming motor: 370W, mechanical constantly variable transmission,200～1000 rpm/min |
Film forming motor: 370W, mechanical constantly variable transmission,200～1000 rpm/min |
||
|
Cold trap |
1㎡ tube nest |
1㎡tube nest |
1㎡tube nest |
|
|
Heavier component discharge |
Gear pump |
29# Grinding mouth adapter |
29# Grinding mouth adapter |
|
|
Flow 3L～15L/H |
10L glass bottle 1pcs, bottle holder 1pcs |
10L glass bottle 1pcs, bottle holder 1pcs |
||
|
200W motor, electronic speed regulation. |
Lifting table 1pcs |
Lifting table 1pcs |
||
|
Lighter component discharge |
Gear pump |
29# Grinding mouth adapter |
29# Grinding mouth adapter |
|
|
Flow 3L～15L/H |
10L glass bottle 1pcs, bottle holder 1pcs |
10L glass bottle 1pcs, bottle holder 1pcs |
||
|
200W motor, electronic speed regulation. |
Lifting table 1pcs |
Lifting table 1pcs |
||
|
Material pipeline |
Jacketed insulation |
Jacketed insulation |
Jacketed insulation |
|
|
Shelf & assemble |
304 stainless steel pipe |
304 stainless steel pipe |
304 stainless steel pipe |
|
|
Accessory |
Vacuum B95 |
Water ring pump |
Water ring pump |
Water ring pump |
|
Main evaporator heating |
200℃/5.5KW |
200℃/5.5KW |
200℃/5.5KW |
|
|
Raw material section insulation |
1,200℃/2KW |
1,200℃/2KW |
1,200℃/2KW |
|
|
External cold trap cooling |
1. Circulating water, low cost |
1. Circulating water, low cost |
1. Circulating water, low cost |
|
|
2. Or choose chiller |
2. Chiller |
2. Or choose chiller |
Vacuum system of this wiped film evaporator set (FYI, detail vacuum system will be different of different wiped film distillation system, please contact us – info@toption-china.com )
|
|
| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
Wiped film evaporator is widely used to evaporate, condense, decolor, trip, react, degas, deodorant the materials with high heating-sensitive and easy to oxidate.

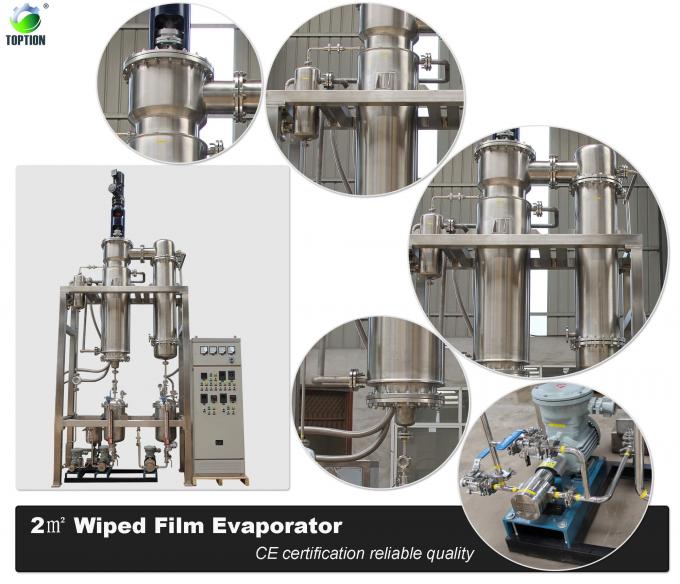

Technical parameters of thin film evaporator
|
