15L Jacketed Essential Oil Distillation Equipment Stainless Steel
Detail Information Place of Origin China Brand Name TOPTION Application: Chemical Industry Evaporation Efficiency: 95% Film System: Wiped Filming System Heating Method: Electric Heating Material: Stainless Steel Type:…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Application: | Chemical Industry |
| Evaporation Efficiency: | 95% |
| Film System: | Wiped Filming System |
| Heating Method: | Electric Heating |
| Material: | Stainless Steel |
| Type: | Molecular Distillation Equipment |
| Voltage: | 220V -60hz |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | 15l Essential Oil Distillation Equipment , Jacketed Essential Oil Distillation Equipment , Stainless Steel Essential Oil Distillation |
-
-

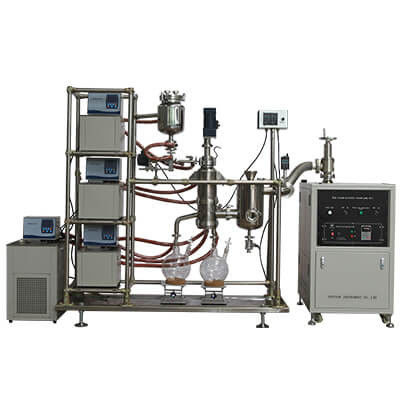

MDS-10 stainless steel essential oil distiller
- Jacketed stainless steel material feeding tank.
- Gear pump material feeding type.
- Gear pump collection type.
- Filter net customize – In the cbd liquid, worried about the presence of cellulose that has not been filtered clean, again filtered. Ensure good separation effect, high quality oil and equipment maintenance, multiple functions
Model
MDS-10C
MDS-10B
MDS-10A
Material tank
Upgrade15L jacketed stainless steel tank
Upgrade15L jacketed stainless steel tank
5L jacketed stainless steel tank
2 sight glass at top, with insulated ball valve.
2 sight glass at top, with insulated ball valve.
Material charging
Gear pump
Gear pump
Pressure-difference valve
Flow 3L～15L/H
Flow 3L～15L/H
Flow 3L～15L/H
200W motor, electronic speed regulation.
200W motor, electronic speed regulation.
200W motor, electronic speed regulation.
Evaporator
Evaporation area 0.1㎡
Evaporation area 0.1㎡
Evaporation area 0.1㎡
Film forming way: scraper (roller is optional)
Film forming way: scraper (roller is optional)
Film forming way: scraper (roller is optional)
Material:316L
Material:316L
Material:316L
Mechanical seal (Magnetic seal is optional)
Mechanical seal (Magnetic seal is optional)
Mechanical seal (Magnetic seal is optional)
Film forming motor:370W, mechanical constantly variable transmission,200～1000rpm/min
Film forming motor:370W, Mechanical constantly variable transmission,200～1000 rpm/min
Film forming motor:370W, Mechanical constantly variable transmission,200～1000 rpm/min
Cold trap
1. 0.4㎡chiller cooling cold trap
1. 0.4㎡chiller cooling cold trap
1. 0.4㎡chiller cooling cold trap
2. 3L liquid nitrogen cold trap
2. 3L liquid nitrogen cold trap
2. 3L liquid nitrogen cold trap
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)
Choose 1 in above 3 types
Choose 1 in above 3 types
Choose 1 in above 3 types
Heavier component discharge
Gear pump
29# Grinding mouth adapter
29# Grinding mouth adapter
Flow 3L～15L/H
10L glass bottle 1pcs, bottle holder 1pcs
10L glass bottle 1pcs, bottle holder 1pcs
200W motor, electronic speed regulation.
Lifting table 1pcs
Lifting table 1pcs
Lighter component discharge
Gear pump
29# Grinding mouth adapter
29# Grinding mouth adapter
Flow 3L～15L/H
10L glass bottle 1pcs, bottle holder 1pcs
10L glass bottle 1pcs, bottle holder 1pcs
200W motor, electronic speed regulation.
Lifting table 1pcs
Lifting table 1pcs
Material pipeline
Jacketed insulation
Jacketed insulation
Jacketed insulation
Shelf & assemble
304 stainless steel pipe
304 stainless steel pipe
304 stainless steel pipe
Note: Different Temperature Control System For Heavier Component & Light Component,benefit for heat sensitive material.
Note: Precision Vacuum Control: international universal process standard, prevent all factors to cause vacuum error.
Multistages molecular distillation equipment customize, contact info@toptionlab.com

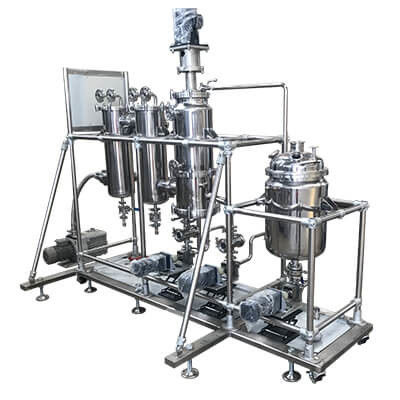

More molecular distillation equipment
-
-
-
Molecular Distillation Equipment Distillate
- “A” Series short path molecular distillation equipment
– Jacketed Material Feeding Tank.
-Feeding Type: Differential Pressure PTFE.
-Collection Type: Glass Flask.
- “B” Series molecular distillation machine
-Jacketed Stainless Steel Material Feeding Tank.
-Gear Pump Material Feeding Type.
-Glass Flask Collection Type.
- “C” (E) Series molecular sieve ethanol distillation
Jacketed Stainless Steel Material Feeding Tank.
Gear Pump Material Feeding Type.
Gear Pump Collection Type.
Technical parameters of MDS-6 Series molecular distillation equipment:
Model
MDS-6C
MDS-6B
MDS-6A
Material tank
3L jacketed stainless steel tank
3L jacketed stainless steel tank
1L jacketed glass tank
2 sight glass at top, with insulated ball valve.
2 sight glass at top, with insulated ball valve
/
Material charging
Gear pump
Gear pump
Differential pressure PTFE valve.
Flow 0.5L～3L/H
Flow 0.5L～3L/H
Feed rate 0.5L～3L/H
120W motor, electronic speed regulation.
120W motor, electronic speed regulation.
/
Evaporator
Evaporation area 0.06㎡
Evaporation area 0.06㎡
Evaporation area 0.06㎡
Film forming way: scraper (roller is optional)
Film forming way: scraper (roller is optional)
Film forming way: scraper (roller is optional)
Material:316L
Material:316L
Material:316L
Mechanical seal (Magnetic seal is optional)
Mechanical seal (Magnetic seal is optional)
Mechanical seal (Magnetic seal is optional)
Film forming motor:200W motor, electronic speed regulation.
Film forming motor:200W motor, electronic speed regulation.
Film forming motor:200W motor, electronic speed regulation.
Cold trap
1. 0.2㎡ chiller cooling cold trap
1. 0.2㎡chiller cooling cold trap
1. 0.2㎡chiller cooling cold trap
2. or 1L liquid nitrogen cold trap
2. 1L liquid nitrogen cold trap
2. 1L liquid nitrogen cold trap
3. Dual-purpose (chiller & liquid nitrogen cold trap dual purpose).
3. Dual-purpose (chiller & liquid nitrogen cold trap dual purpose).
3. Dual-purpose (chiller & liquid nitrogen cold trap dual purpose).
Choose 1 in above 3 types
Choose 1 in above 3 types
Choose 1 in above 3 types
Heavier component discharge
Gear pump
29# Grinding mouth adapter
29# Grinding mouth adapter
Flow 0.5L～3L/H
5L glass bottle 1pcs, bottle holder 1pcs
5L glass bottle 1pcs, bottle holder 1pcs
120W motor, electronic speed regulation.
Lifting table 1pcs
Lifting table 1pcs
Lighter component discharge
Gear pump
29# Grinding mouth adapter
29# Grinding mouth adapter
Flow 0.5L～3L/H
5L glass bottle 1pcs, bottle holder 1pcs
5L glass bottle 1pcs, bottle holder 1pcs
120W motor, electronic speed regulation.
Lifting table 1 pcs
Lifting table 1 pcs
Material pipeline
Jacketed insulation
Jacketed insulation
Jacketed insulation
Shelf & assemble
304 stainless steel pipe
304 stainless steel pipe
304 stainless steel pipe
Note: Different Temperature Control System For Heavier Component & Light Component,benefit for heat sensitive material.
Note: Precision Vacuum Control: international universal process standard, prevent all factors to cause vacuum error.

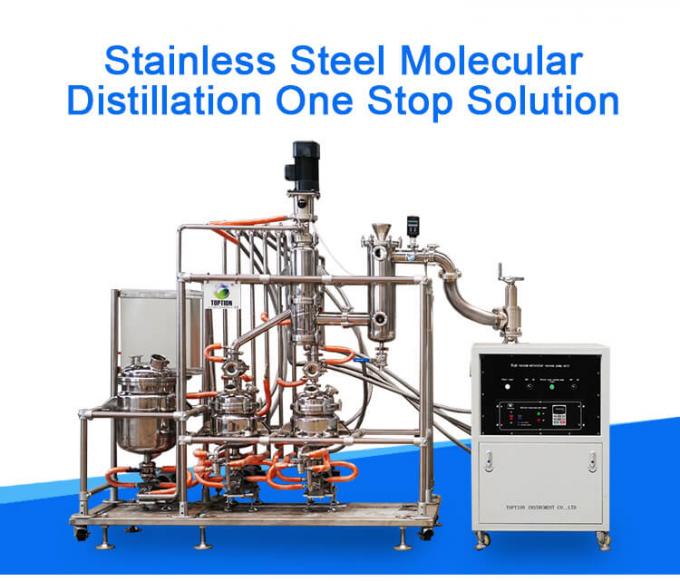

Why choose stainless steel cbd oil distiller?
- High Efficient: stainless steel material’s quickly heat transfer rate, guarantee extraction efficient is 1.4 times higher.
- Automatic Control System, 24h Continuously Running: Automatic feeding and collecting, convenient operation and save labor cost.
- Visual operation: sight glass at heavier component, lighter component, cold trap, could observe all material outflow change during whole research.
- No Congeal: jacketed insulation pipeline and feeding tank design, benefit for viscous material.
- Successfully Solve The Problem Difficult To Replace Consumables: stainless steel evaporator flange and pipeline flange.
- 24hours Continuously Produce: Small Experiment – Pilot Research – Industrial Type, whole produce process meet international process standard, provide no deviation experimental conditions for you.
CE certified, ISO approved reliable molecular distillation equipment manufacturer, support global installation / training service, contact info@toptionlab.com to help you save time and cost.
-
