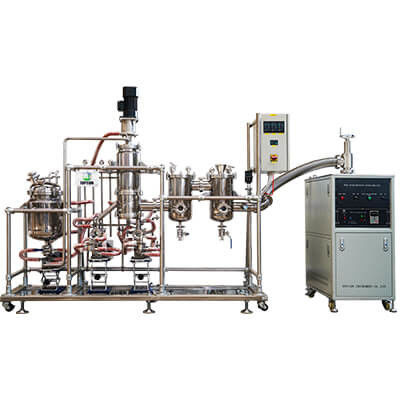

High Vacuum Wiped Film Evaporator Pharmaceutical Short Path Distillation Unit
Detail Information Place of Origin China Brand Name TOPTION Application: Chemical/Pharmaceutical/Food Industry Distillate Collection: Condenser Feed System: Gear Pump Film System: Wiped Filming System Material: Stainless Steel Temperature…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Application: | Chemical/Pharmaceutical/Food Industry |
| Distillate Collection: | Condenser |
| Feed System: | Gear Pump |
| Film System: | Wiped Filming System |
| Material: | Stainless Steel |
| Temperature Control: | Digital Display |
| Type: | Molecular Distillation Equipment |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | wiped film evaporator pharmaceutical , high vacuum wiped film evaporator , pharmaceutical molecular distillation equipment |
-
-
wiped film high vacuum molecular distillation
Below a distillation plant for laboratory use is described. The plant is used for:
- Process development.
- Feasibility studies.
- Continuous distillation of smaller quantities.
- For heat sensitive chemical, pharmaceutical and food products.
The achievable operating pressure could be as low as 0.001 mbar in the short path evaporator. (Depending on product and process).
Technical parameters of TOPTION this set thyme oil distillation machines:
Type of molecular distillation
MDS-30B short path distillation unit
Maximum distillation temperature
300 °C
Minimal achievable operating pressure
(depending on product)
< 0.001mbar with rotary vane pump and oil diffusion vacuum pump.
Throughput (depending on product)
18– 30 kg/h
Evaporation surface
0.3 m²
Surface of internal condenser
0.5 m²
Wiped film system
Scraper type film scraping rotor
Maximum viscosity of product can be processed
Under operating temperature: 5000 centipoise.
Main features of oil distillation machine:
1. Material feeding system: 20L jacketed stainless steel feed tank, which is jacket design, can be heated and achieve heat preservation by circulating heat conduction oil.
High precision gear pump feeding (5-30L/H).
2. Short path evaporator is made of S304 stainless steel material, its evaporator surface: 0.3㎡.
3. Heavier component discharge system and Lighter component discharge system both are 30L stainless steel tank.
4. Heating & Cooling Unit, vacuum pump (could achieve 10Pa, 1Pa, 0.1Pa) are equipped well.
5. Gage pressure vacuum display, with vacuum regulator.
Related laboratory type molecular distillation equipment:
Application of TOPTION brand cbd thc molecular distillation equipment:
-
-
-
-
Technical parameters of essential oil distillation machine:
Type of molecular distillation
MDS-30BE wiped film high vacuum molecular distillation
Maximum distillation temperature
300 °C
Minimal achievable operating pressure
(depending on product)
< 0.001mbar with rotary vane pump and oil diffusion vacuum pump.
Throughput (depending on product)
18–30 kg/h
Evaporation surface
0.3 m²
Surface of internal condenser
0.5 m²
Surface of external condenser
0.5 m²
Wiped film system
Scraper type film scraping rotor
Maximum viscosity of product can be processed
Under operating temperature: 5000 centipoise.
1. 20L jacketed stainless steel feed tank, jacketed design.
2.High precision gear pump feeding (5-30L/H), stable and continuously material feeding.
3.0.3㎡ S304 stainless steel short path evaporator.
4.30L collecting tank * 2pcs, different for heavier component discharge system and lighter component discharge system.
5.External condenser system: 1set condenser whose heat exchange area is 0.5㎡, material is S304 stainless steel.
6. Heating and cooling system, vacuum system ( could achieve 10Pa, 1Pa, 0.1Pa) are equipped well.
Laboratory type short path molecular distillation unit:
-
