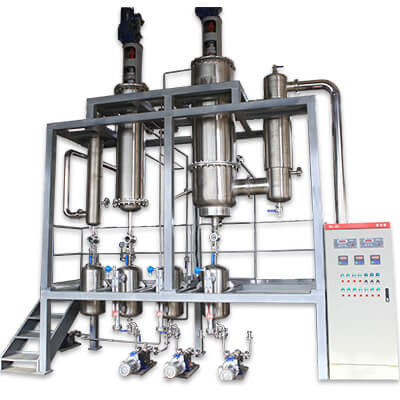

30l-260l Oil Wiped Film Molecular Distillation Unit High Purity
Detail Information Place of Origin China Brand Name TOPTION Diameter: 200 (mm) Distillate Outlet: Continuous Film System: Wiped Filming System Material: Stainless Steel Residue Outlet: Continuous Type: Molecular…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Diameter: | 200 (mm) |
| Distillate Outlet: | Continuous |
| Film System: | Wiped Filming System |
| Material: | Stainless Steel |
| Residue Outlet: | Continuous |
| Type: | Molecular Distillation Equipment |
| Voltage: | 220V -60hz |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | 30l wiped film evaporator , 30l molecular distillation equipment , 260l wiped film evaporator |
-
-
High Purity Plant Oil Molecular Distillation
Below a distillation plant for laboratory use is described. The plant is used for:
- Process development.
- Feasibility studies.
- Continuous distillation of smaller quantities.
- For heat sensitive chemical, pharmaceutical and food products.
The achievable operating pressure may be as low as 0.001 mbar in the short path evaporator. (Depending on product and process).
1.Technical parameters of thin film molecular distillation equipment:
Type of molecular distillation
MDS-200 molecular distillation system
Maximum distillation temperature
300 °C
Minimal achievable operating pressure
(depending on product)
< 0.001mbar with rotary vane pump and oil diffusion vacuum pump.
Throughput (depending on product)
30– 260 kg/h
Evaporation surface
2 m²
Surface of internal condenser
2 m²
Wiped film system
Scraper type film scraping rotor
Maximum viscosity of product can be processed
Under operating temperature: 5000 centipoise.
2. Main features of this short path distillation kit
- Material feeding system: 20L jacketed stainless steel tank, and through high precision gear pump feeding (20-80L/H), stable and continuously.
- Short path evaporator: S304 stainless steel material, and evaporator surface: 0.5㎡, design temperature of evaporator jacket: 350℃.
- Heavier component discharge system: 50L collecting material, discharge pipeline is consist of 1pcs vacuum ball valve & 1pcs 29# internal grinding mouth bottle adapter.
- Lighter component discharge system: 20L collecting material, 1 set condenser whose heat exchange area is 2㎡, cooling and collecting the distillation extract light component, material is S304 stainless steel.
- Heating & Cooling Unit:
No.
Model
Description
Features
Qua.
1
UC-A2530 heater
Matched with main evaporator.
– Temperature range: RT-300℃.
– Power: 25KW, AC 380V.
– Medium: conduction oil.
1set
2
UC-5020 heater
Matched with feeder and light component’s pipe temperature preservation.
– Temperature range: RT-200℃.
– Power: 5KW, AC 220V.
– Medium: conduction oil.
1set
3
UC-5020 heater
Matched with heavier component’s pipe temperature preservation.
–Temperature range: RT-200℃.
– Power: 5KW, AC 220V.
– Medium: conduction oil.
1set
4
HR-250 high & low temperature circulator
Matched with internal condenser.
– Temperature range: -20~98℃.
– Power: 25KW custimized, AC 380V.
– Medium: conduction oil.
1set
- Vacuum system: vacuum degree could achieve 10Pa, 1Pa, 0.1Pa, vacuum pump are equipped well.
Please check our molecular distillation equipment production process, more welcome contact info@toption-china.com for factory visit:
Know more about TOPTION INSTRUMENT CO.,LTD
-
-
-
Technical parameters of industrial molecular distillation
Type of molecular distillation
MDS-50CE vacuum molecular distillation stills
Maximum distillation temperature
300 °C
Minimal achievable operating pressure
(depending on product)
< 0.001mbar with rotary vane pump and oil diffusion vacuum pump.
Throughput (depending on product)
20– 60 kg/h
Evaporation surface
0.5 m²
Surface of internal condenser
2 m²
Surface of external condenser
2 m²
Wiped film system
Scraper type film scraping rotor
Maximum viscosity of product can be processed
Under operating temperature: 5000 centipoise.
TOPTION molecular distillation equipment factory visit contact info@toption-china.com 24h/7days online service.
Laboratory short path molecular distillation:
-
