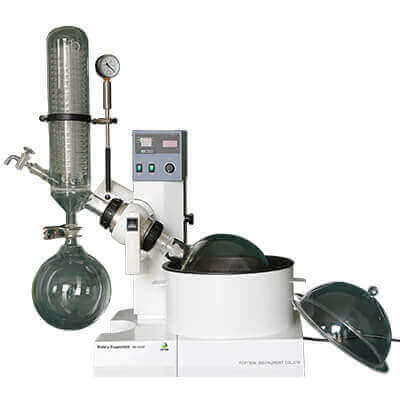

1L 3L Roto Evaporator Toption China Evaporation Laboratory

Detail Information Place of Origin China Brand Name TOPTION Condense Area: Determined By Model Condenser: Vertical With Feed Valve Evaporation Capacity: Determined By Model Main Uses: Separation Maximum…

Rotary Evaporator

Product Information

Detail Information

Place of Origin China
Brand Name TOPTION
Condense Area: Determined By Model
Condenser: Vertical With Feed Valve
Evaporation Capacity: Determined By Model
Main Uses: Separation
Maximum Capacity: 5000mL
Rotary Bottle: 1L
Sealing: PTFE +Viton
Volume: 1L-200L
Price: Negotiable
Delivery Time: 15-20 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment,
Highlight: 3l roto evaporator , roto evaporator toption , toption china evaporation laboratory
Product Description
    • roto evaporator

      TOPTION lab roto evaporator 1L 2L 3L 5L, the most popular model is 5L, which has inventory and supports fast delivery within 3 days. Wooden box packaging, support video inspection. If you want to find an ideal instrument for concentration, crystallization, drying, separation and solvent recovery,  especially suitable for the biological products concentration and purification which is easy to decompose deformation under high temperature. Then rotary evaporator will be your top option.

      5L rotary evaporator working process
      rotavap distillation certification

      The working principle of rotary evaporator (As shown in below picture)

      Material liquid is preheated to the boiling point, is added from the bottom of the heating chamber, and is strongly vaporized in the heating tube, so that the generated vapor drives the material liquid to rise in a film-like evaporator along the tube wall. The liquid film continues to evaporate as it rises. The solution only needs to pass through the heating tube once to reach the required concentration.

      The technical parameters of lab vacuum rotary evaporator

      Model RE-52AA RE-2000 RE-5000
      Capacity 1L 2L 5L
      Rotating flask 0.5L ( 0.1L, 0.25L, 1L, 2L are optional) 2L + 1L (0.1L,0.25L,0.5L are optional) 5L ( 3L, 2L, 1L are optional)
      Receiving flask 0.5L 1L 3L
      Warranty period 1 Year, life time service
      Voltage 220V/110V, 50/60Hz (customizable)
      Power 1100W 1500W 2200W
      Dimension 670X580X560 mm 860x795x670 mm 840x750x910 mm
      Weight 26kg 50 kg 63 kg
      Certification CE/ISO9001
      Advantages Long Service Life, Easy to Operate, Energy saving, High Safety Level
      Application Manufacturing Plant, Evaporation, Concentration, Chemistry, Pharmaceutical, CBD industry, Ethanol / Alcohol Recovery, Solvent Remove
      Package 1. The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases.
      2. Both neutral and customized packaging can be available.
    • Advantages of rotary evaporator

      5L rotary evaporator display
      5L rotary evaporator pressure guage



      5L rotary evaporator condenser
      5L rotary evaporator flask



      5L rotary evaporator collecting flask
      5L rotary evaporator accessories



      5L rotary evaporator PTFE sealing
      5L rotary evaporator heating bath



      5L rotary evaporator cover lid
      rotavap distillation

      Factory workshop display of rotary evaporator

      rotary evaporator glass
      rotary evaporator flask

      rotavap distillation factory
