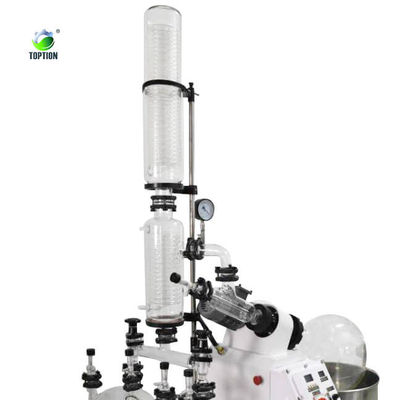

GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
Detail Information Place of Origin China Brand Name TOPTION Bath Material: Stainless Steel Condense Area: 0.31㎡ Condenser Type: Vertical Core Components: Sealing Evaporating Speed: Water: 5L/h, Alcohol: 14.3L/h…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Bath Material: | Stainless Steel |
| Condense Area: | 0.31㎡ |
| Condenser Type: | Vertical |
| Core Components: | Sealing |
| Evaporating Speed: | Water: 5L/h, Alcohol: 14.3L/h |
| Glass: | High Borosilicate GG3.3 |
| Material: | High Borosilicate Glass |
| Rotation Control: | Rotary Stepless Control |
| Rotation Flask: | 5L 10L 20L 50L |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | gg3.3 20 liter rotovap , rotovap distillation 10l , 20l evaporation lab |
-
-
rotovap distillation
TOPTION rotovap distillation equipment wide application include manufacturing plant, evaporation, concentration, chemistry, pharmaceutical, CBD industry, ethanol / alcohol recovery, solvent remove, etc. Fully customizable with wide capacity range 100L 50L 30L 20L 10L 5L 3L 2L 1L, cooling circulating pump ( chillers ) and vacuum pump are available, rotary evaporator complete set factory directly sale help you save cost most.
The working principle of rotary evaporator is under the vacuum condition, constant temperature heating, evaporation bottle be rotary by constant speed, material forming a large area film at the wall of bottle, efficient evaporation. Solvent vapors through the efficient glass condenser cooling, recycling in the collection bottle, improve the efficiency of evaporation.
Technical parameters of rotary evaporator 20l
Model RE-5210 RE-5220 Warranty period 1 Year Voltage 220V/110V, 50/60Hz (customizable) Power 3000W 5000W Capacity 10L 20L Rotating flask 10L / F95 20L / F125 Collection flask 5L, bottom discharge 10L+3L, bottom discharge Lifting type Automatic lifting Dimension 1250x800x800 1260x1030x780 Weight 140 kg 145 kg Certification CE/ISO9001 Advantages Long Service Life, Easy to Operate, Energy saving, High Safety Level Package 1. The glass parts will be wrapped with foam,then put into the carton; the main body portion will be packed in wooden cases.
2. Both neutral and customized packaging can be available.
-
-
-
Structure and advantages of rotary evaporator equipment
-
