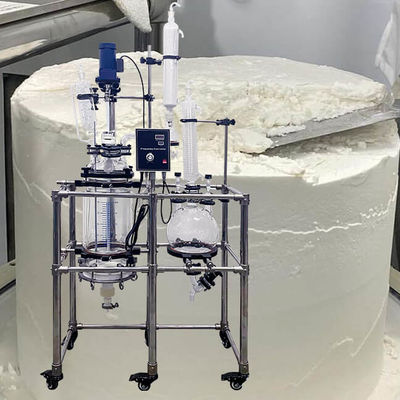

5L-250L Jacketed Lab Reactor With Filtration Stirring Function
Detail Information Place of Origin China Brand Name TOPTION Agitation: Magnetic Or Overhead Stirring Applications: Chemical Synthesis, Pharmaceuticals, Food Processing, Etc. Condenser: Vertical Or Horizontal Control System: Manual…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Agitation: | Magnetic Or Overhead Stirring |
| Applications: | Chemical Synthesis, Pharmaceuticals, Food Processing, Etc. |
| Condenser: | Vertical Or Horizontal |
| Control System: | Manual Or Digital Control |
| Cooling Method: | External Cooling Coil Or Internal Cooling Jacket |
| Heating Method: | Electric Heating Mantle Or Water/oil Bath |
| Inlet/Outlet Ports: | Standard Or Custom Sizes Available |
| Material: | Glass & Stainless Steel |
| Pressure Range: | Full Vacuum To 0.5 Bar |
| Sampling Port: | Optional |
| Sealing Method: | PTFE Or Viton O-ring |
| Support Stand: | Stainless Steel Or Aluminum |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | 250l jacketed lab reactor , 5l 50l jacketed reactor , 5l jacketed lab reactor |
-
-
This type low cost crystallization reactor jacketed lab reactor with filtration and stirring function, equipped with chiller, heater, and vacuum pump complete set. 5L-250L wide capacity range customization, ultrasonic function, stainless steel material and other configuration customization are available, not only for cbd crystallization process, and also is a multi function chemical reactors could be used in laboratory, chemistry, pharmaceutical industries, etc.
-
-
Technical parameters of TOPTION jacketed lab reactor glass reactor complete set with chiller, heater and vacuum pump (The following are only the technical parameters of some models, our capacity range is 5L-250L, please contact us by info@toptionlab.com to get catalogue and factory directly sale price list)
Model
TOPT-5F
TOPT-10F
TOPT-20F
Electrical Requirements
110/220V, 60Hz 1‐PH
110/220V, 50/60Hz 1‐PH
110/220V, 50/60Hz 1‐PH
Standard Stirring Motor Power
120W
120W
120W
Rotation Controller
Digital controller with variable frequency drive, 600 rpm
Same Same Agitator Type
Anchor Design, 304 Stainless Steel Reinforced with PTFE Coating
Same Same Filter Plate
Glass Sand Core Filter
Same Same Reaction Vessel Capacity
5L
10L
20L
Liquid Collection Vessel
5L 10L 10L Glass Vessel Temperature Range
-120℃~250℃
-120℃~250℃
-120℃~250℃
Inner Vessel Pressure
Under 0.098Mpa
Under 0.098Mpa
Under 0.098Mpa
-
-
-
-
