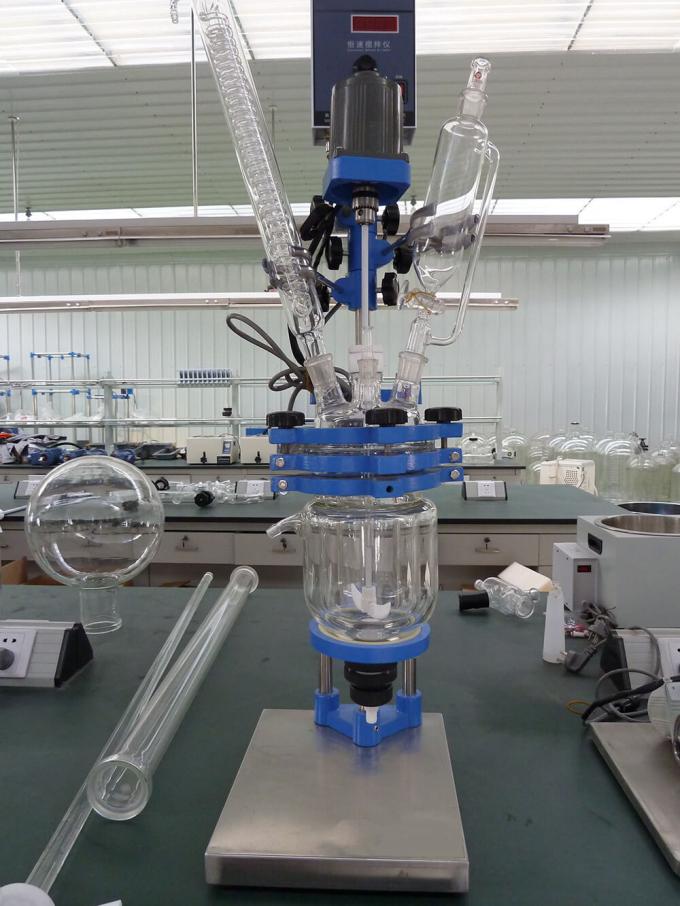

Three Layer Glass Reactor 1L-100L Glass & Stainless Steel Reactor

Price:	Negotiable
Delivery Period:	15-20 workdays
Payment Method:	LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

TOPTION

Accessories:

Condenser, Reflux, Or Distillation Setup

Agitator Type:

Anchor, Paddle, Or Propeller

Applications:

Chemical, Pharmaceutical, Or Biotech Processes

Capacity:

1L-100L

Control System:

Manual Or Automated

Cooling Type:

External Cooling Coil Or Jacket

Heating Type:

Electric Heating Mantle Or Oil Bath

Inlet/Outlet Ports:

Flange Or Threaded

Material:

Glass & Stainless Steel

Mixing Type:

Magnetic Or Overhead Stirring

Reactor Type:

Batch Or Continuous

Sealing Type:

PTFE Or FFKM

Price:

Negotiable

Delivery Time:

15-20 workdays

Payment Terms:

LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Highlight

three layer glass reactor 1l

100l glass & stainless steel reactor

1l glass & stainless steel reactor

Product Description

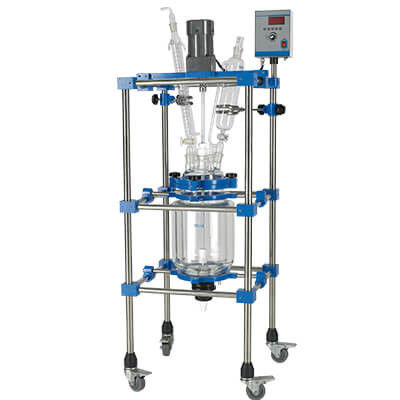

Three layer glass reactor

Compared with jacketed glass reactor, it has outermost layer to keep vacuum airtight state.
More effective to protect temperature,so as to save reaction time and finally make your research more effective.

Technical parameters of three layer glass reactor:

Type	Stir medium flange	Liquid material inflow	Condenser	Temp. measure	Multi function valve	Solid charging port	Stirring paddle	Reactor lid flange(mm)	Inner diameter of reactor body(mm)	External diameter(mm)	Reactor body height(mm)	Power (w)	Rotate speed (rpm)
Type	Stir medium flange	Liquid material inflow	Condenser	Temp. measure	Multi function valve	Solid charging port	Stirring paddle	Reactor lid flange(mm)	Inner diameter of reactor body(mm)	External diameter(mm)	Reactor body height(mm)	Power (w)	Rotate speed (rpm)
TOPT-1L	35	24# 0.25L	24#	14#	—–	—–	￠7mm Anchor type	150	113	150	250	40	50-800
TOPT-2L	35	24# 0.25L	24#	14#	—–	—–	￠7mm Anchor type	150	135	180	280	40	50-800
TOPT-3L	35	24# 0.25L	24#	14#	—–	—–	￠7mm Anchor type	150	150	200	300	40	50-800
TOPT-5L	40	24# 1L	24#	19#	24#	—–	￠10mm single layer two blade paddle type	180	180	230	400	60	50-600
TOPT-10L	50	34# 1L	34#	DN15	DN25	DN80	￠16mm single layer three blade paddle type	265	230	290	450	120	50-600
TOPT-20L	50	34# 1L	34#	DN15	DN25	DN80	￠16mm single layer three blade paddle type	265	290	330	550	120	50-600
TOPT-30L	50	34# 1L	34#	DN15	DN25	DN80	￠16mm single layer three blade paddle type	265	330	365	730	120	50-600
TOPT-50L	50	34# 1L	34#	DN15	DN25	DN80	￠16mm double layer three blade paddle type	265	365	410	850	140	50-600
TOPT-80L	50	5L 24#	DN40 ball mouth	DN15	DN25	DN80	￠16mm three layer three blade paddle type	340	410	460	950	250	50-600
TOPT-100L	60	5L 24#	DN40 ball mouth	DN15	DN25	DN80	￠16mm three layer three blade paddle type	340	460	500	950	250	50-600
TOPT-150L	60	5L 24#	DN40 ball mouth	DN15	DN25	DN80	￠16mm three layer three blade paddle type	340	550	600	980	400	50-600
TOPT-200L	60	10L DN25	DN50 ball mouth	DN25	DN25	DN100	￠16mm three layer three blade paddle type	340/ 440PP flange	550	650	1100	400	50-600

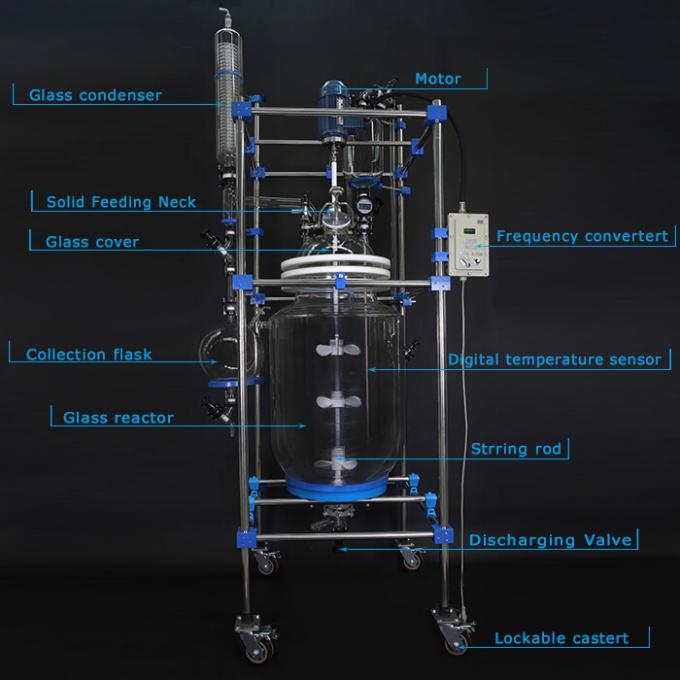

Jacketed glass reactor

CE ISO certification reliable quality guarantee

Customer cases

Factory visit, welcome contact info@toption-china.com 24h/7days online service.

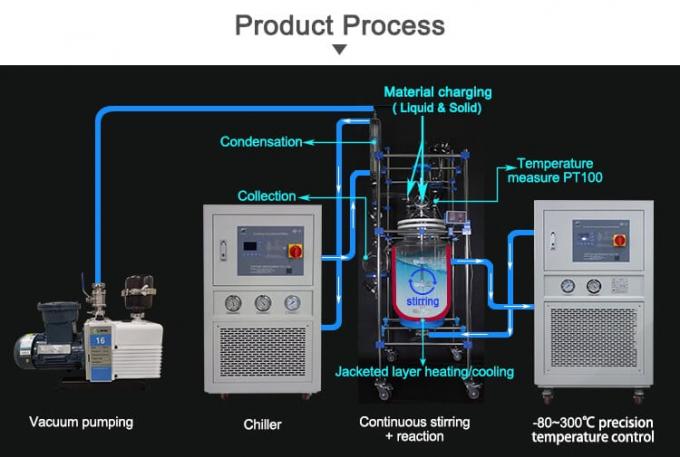

- Working principle of glass reactor

  Glass reactor with vacuum pump and chiller complete set customization, -80 ~ 300 celsius degree precision temperature control, single layer, jacketed, three layer glass reactor customization, ISO CE certification, below are some customized cases we give customers for your reference, contact info@toptionlab.com to ask price list now.
