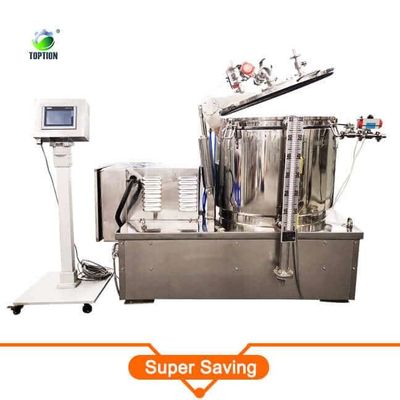

TOPTION Cryogenic Ethanol Extraction Equipment 50lbs Cryo Ethanol Extraction
Detail Information Place of Origin China Brand Name TOPTION Capacity: Determined By Model Certifications: CE, ISO Control Type: Digital Material: Stainless Steel Power Source: Electric Safety Features: Overheat…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Capacity: | Determined By Model |
| Certifications: | CE, ISO |
| Control Type: | Digital |
| Material: | Stainless Steel |
| Power Source: | Electric |
| Safety Features: | Overheat Protection |
| Voltage: | 220V |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | toption cryogenic ethanol extraction equipment , cryogenic ethanol extraction equipment 50lbs , toption co2 extraction equipment |
-
-
15lbs – 220lbs biomass/batch customization with greatest flexibility, TOPTION brand cryogenic ethanol extraction equipment has a high degree of automation, large processing capacity, convenient operation and maintenance, and can realize remote control. Its special structure allows the working temperature to be as low as -80 degrees celsius ( low temperature circulating bath chillers are available for precision temperature control ), so as to prevent the volatilization of ethanol, and improves cbd oil production efficiency.
Technical parameters of TOPTION hotsale cryogenic ethanol extraction equipment ( lab small type – pilot – industry wide capacity range customization with greatest flexibility, 15lbs – 220lbs biomass per batch)
Centrifuge extractors model TOP-C50 TOP-C110 Certification of extractors UL certification, GMP standard Customization Storage tank for ethanol pre-cooling, chillers with wide temperature range, filter bags, insulation cloth for temperature good preservation performance Biomass per batch 50lbs 110lbs Extraction tank diameters 24inch 32inch Volume of extraction tank 110L 251L Standard max speed ( customization support) 1500 r/min 1000 r/min Alcohol solvent 201L 377L Vessel load bearing 100 lbs 320 lbs Main motor power 5.5 / 7.5 7.5 / 11 Note: lab – pilot – industry wide capacity range customization, please contact info@toptionlab.com to ask factory directly sale price list.
Advantages of TOPTION low temperature ethanol extraction equipment
- Mechanical spring to help the operator easily open the cover.
- Meet different explosion-proof requirements, Integrated explosion-proof control cabinet, EX external split PLC operation screen optional.
- Siemens PLC control system & operation screen.
- Variable speed governor for stepless speed regulation of centrifuges, UL inverter optional.
- Level gauge, check if the amount of alcohol soak is enough at any time.
- Drum welds are 100% non-destructive inspection, strict dynamic balance test. No stiffeners, reducing sanitary dead angles, easy to clean, low running noise.
- Nitrogen protection device, using nitrogen for “inert environmental protection”.
- CE certified electrical appliances, UL / EN standards available.
- Storage tank, -80 degree Celsius Chiller, Filter bag are available.
-
