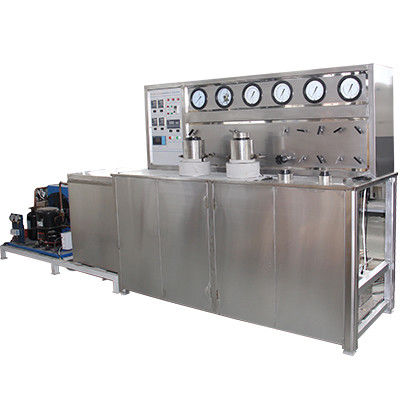

10L Supercritical Fluid Extraction Equipment Natural CBD Oil
Detail Information Place of Origin China Brand Name TOPTION Capacity: 10L Certifications: CE, ISO Material: Stainless Steel Power Supply: 110V/220V Recovery Rate: Up To 95% Temperature Range: 0-200°C…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Capacity: | 10L |
| Certifications: | CE, ISO |
| Material: | Stainless Steel |
| Power Supply: | 110V/220V |
| Recovery Rate: | Up To 95% |
| Temperature Range: | 0-200°C |
| Type: | Closed Loop Extractor |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | Supercritical Fluid Extraction Equipment , CBD Oil Extraction Equipment , 10L Supercritical Fluid Extraction |
-
-
Supercritical fluid extraction natural cbd oil
Through supercritical co2 extraction machine can take CO2 as the solvent to make extraction and purification upon a lot of products such as biological profucts, foodstuff and medicines.
Application
Description
Agriculture Food
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Pharmaceutical
Extraction of active components, preparation of natual products, viamins.
Cosmetic
Extraction of fragrances and oils.
Laundry
Dry cleaning of garments.
Mechanical
Degreasing parts, precision cleaning of high-value componets.
A wide range of industries for the extraction of natural products for the food additives (such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc), drugs (such as artemisia annua vegerarian, magnolia, angelia, etc), health care (such as sea buckthorn, samara, pomegranate, lycopene, etc).
- Supercritical co2 extraction machine effect picture
- Working process of supercritical co2 extractor
Technical parameters of this set supercritical co2 herbal oil extraction machine:
Model
Extraction capacity
Pressure
Temperature range
Combining form
TOP220-40-100
50L×2
400bar
RT-75℃
Two extracting pot-two separating pot circulation mode.
TOP221-40-100
50L×2
400bar
RT-75℃
Two extracting pot-two separating pot one rectifying column circulation mode.
Main configurations of industrial supercritical co2 extraction equipment:
1.Extraction kettle
Materials 0Cr18Ni9 Volume 24L Tow sets Maximum operating pressure 40MPa 2.Separation kettle
Materials 0Cr18Ni9 Volume 10L Two sets Maximum operating pressure 25MPa 3.CO2 high pressure pump
Flow (three-plunger): 0~400L/h Adjustable by frequency conversion Maximum operating pressure 40Mpa Pump head equipped with cooling system. 4.Entrainer pump
Flow(double-plunger):1/4—20L/h Mechanical regulation Maximum operating pressure: 40Mpa 5. Refrigeration system
Refrigerating capacity: 15000Kcal/h, air or water cooling. Temperature control range: -5℃～+5℃, Meeting technological requirements. 6.Heat exchange system
Materials 0Cr18Ni9 Specification Φ14, Φ18 Maximum operating pressure 40MPa, 30MPa 7.CO2 stock tank
Materials 0Cr18Ni9 Volume 20L, One set Maximum operating pressure: 16Mpa 8.Liquid level meter
Materials 0Cr18Ni9 Maximum operating pressure: 16Mpa 9.Flow meter and cumulative meter
Specification Metal tube float type flow meter digital display remote transmitting 40~400L/h. Digital display unit Indicating instant flow and cumulative flow respectively. 10.Temperature control system
Control range Adjustable from room temperature to 75℃ (water bath). Dynamic temperature control precision: ±1℃, Double-screen digital display. 11.Safety protection device
1) The outlet of high pressure pump is equipped with an electro connecting pressure gauge, with set operating pressure and overpressure pump trip protection
2) Extraction kettle, separation kettle, rectifying column, stock tank and others are equipped with safety valve and overpressure automatic pressure release protection respectively according to their maximum operating pressures.
12.Purification filter
Material 0Cr18Ni9 Specification 5L/16MPa 13.Feed cylinder hoisting system
The feed cylinder hoisting system is equipped with an electric block, for loading and unloading of feed cylinder. 14.Pipeline
1)Valves and pipe fittings are DW14 and DW18 respectively.
2) Containers, valves, pipe fittings and pipelines which contact with fluid are made from 0Cr18Ni9 stainless steel. The valve are made by heat treatment, firm and durable.
Related short path molecular distillation equipment cbd thc distiller, essential oil distillation:
-
-
-
Technical parameters of supercritical fluid extraction equipment
Model
Extraction capacity
Pressure
Temperature range
Combining form
TOP220-40-100
50L×2
400bar
RT-75℃
Two extracting pot-two separating pot circulation mode.
TOP221-40-100
50L×2
400bar
RT-75℃
Two extracting pot-two separating pot one rectifying column circulation mode.
TOP320-40-150
50L×3
400bar
RT-75℃
Three extracting pot-two separating pot circulation mode.
- Supercritical co2 extraction machine effect picture
- Supercritical co2 extraction machine effect picture
Main configurations of supercritical co2 extraction equipment:
Extraction kettle Separation kettle CO2 high pressure pump Entrainer pump Refrigeration system Heat exchange system CO2 stock tank Liquidometer Purification system Flow meter Temperature control system Safety protection device Feed cylinder hoisting system Note:
1. Pre-heater (3 sets (two different pressure, 50MPa, 16MPa) heated directly).
2. Pump: Pressure pump + Additive pump.
- CO2 pump
- CO2 high pressure pump
- CO2 Recycling pump
3. The controlling of pressure and temperature, flow showing.
- Pressure control.
- Temperature control: Using digital meter to show and control precision 1 class.
- Flow showing.
4. Safety system
- The pressure pump has limit pressure structure, we can set it among the range of working pressure, and stop the pump when pressure is over.
- The extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system.
Laboratory mini supercritical co2 extraction machine:
- HA120-50-0.5 supercritical co2 extraction plant cost
- manufacturer of supercritical co2 extraction plant
-
-
-
Technical parameters of 50L*4 commerical scale supercritical co2 extraction plants processes:
Model
Extraction capacity
Pressure
Temperature range
Combining form
TOP320-40-150
50L×3
400bar
RT-75℃
Three extracting pot-two separating pot circulation mode.
TOP420-40-200
50L×4
400bar
RT-75℃
Four extracting pot-two separating pot circulation mode.
- PLC control system of supercritical co2 extraction equipment
- data collection of supercritical co2 extraction machine
Technical parameters of supercritical co2 extraction cbd
Model
Extraction capacity
Pressure
Temperature range
Combining form
TOP420-40-200
50L×4
400bar
RT-75℃
Four extracting pot-two separating pot circulation mode.
TOP220-40-200
100L×2
400bar
RT-75℃
Two extracting pot-two separating pot circulation mode.
1. Extraction kettle
The extraction kettle is equipped with a water jacketed circulating heating system and feed cylinder for solids and liquids, temperature is adjustable.
Materials: 0Cr18Ni9. Volume: 24L * 2 sets. Maximum operating pressure: 40MPa.
2. Separation kettle
The separation kettle is equipped with a water jacketed circulating heating system, temperature is adjustable.
Materials: 0Cr18Ni9. Volume: 10L * 2 sets. Maximum operating pressure: 30MPa
3. CO2 high pressure pump
Flow (three-plunger): 0~400L/h, Adjustable by frequency conversion.
Maximum working pressure: 40Mpa, Pump head equipped with cooling system.
- CO2 pump
- CO2 high pressure pump
- CO2 Recycling pump
4. Entrainer pump
Flow (double-plunger) : 1/4—20L/h, mechanical adjustment. Maximum operating pressure: 40Mpa
5. Refrigeration system
Refrigerating capacity: 15000Kcal/h, air or water cooling.
Temperature control range: -5℃～+5℃, Meeting technological requirements.
6. Heat exchange system
Materials: 0Cr18Ni9. Specification: Φ14, Φ18. Maximum working pressure: 40MPa, 30MPa.
The heat exchange system is equipped with a water jacketed circulating heating system, temperature is adjustable.
7. CO2 stock tank
Materials: 0Cr18Ni9. Volume : 20L * 1 set . Maximum operating pressure: 16MPa.
Application of CO2 extraction system:
Application
Description
Agriculture Food
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Pharmaceutical
Extraction of active components, preparation of natual products, viamins.
Cosmetic
Extraction of fragrances and oils.
Laundry
Dry cleaning of garments.
Mechanical
Degreasing parts, precision cleaning of high-value componets.
A wide range of industries for the extraction of natural products for the food additives (such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc), drugs (such as artemisia annua vegerarian, magnolia, angelia, etc), health care (such as sea buckthorn, samara, pomegranate, lycopene, etc).
-
-
-
Technical parameters of supercritical co2 extraction cbd
Model
Extraction capacity
Pressure
Temperature range
Combining form
TOP420-40-200
50L×4
400bar
RT-75℃
Four extracting pot-two separating pot circulation mode.
TOP220-40-200
100L×2
400bar
RT-75℃
Two extracting pot-two separating pot circulation mode.
1. Extraction kettle
The extraction kettle is equipped with a water jacketed circulating heating system and feed cylinder for solids and liquids, temperature is adjustable.
Materials: 0Cr18Ni9. Volume: 24L * 2 sets. Maximum operating pressure: 40MPa.
2. Separation kettle
The separation kettle is equipped with a water jacketed circulating heating system, temperature is adjustable.
Materials: 0Cr18Ni9. Volume: 10L * 2 sets. Maximum operating pressure: 30MPa
3. CO2 high pressure pump
Flow (three-plunger): 0~400L/h, Adjustable by frequency conversion.
Maximum working pressure: 40Mpa, Pump head equipped with cooling system.
- CO2 pump
- CO2 high pressure pump
- CO2 Recycling pump
4. Entrainer pump
Flow (double-plunger) : 1/4—20L/h, mechanical adjustment. Maximum operating pressure: 40Mpa
5. Refrigeration system
Refrigerating capacity: 15000Kcal/h, air or water cooling.
Temperature control range: -5℃～+5℃, Meeting technological requirements.
6. Heat exchange system
Materials: 0Cr18Ni9. Specification: Φ14, Φ18. Maximum working pressure: 40MPa, 30MPa.
The heat exchange system is equipped with a water jacketed circulating heating system, temperature is adjustable.
7. CO2 stock tank
Materials: 0Cr18Ni9. Volume : 20L * 1 set . Maximum operating pressure: 16MPa.
Application of CO2 extraction system:
Application
Description
Agriculture Food
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Pharmaceutical
Extraction of active components, preparation of natual products, viamins.
Cosmetic
Extraction of fragrances and oils.
Laundry
Dry cleaning of garments.
Mechanical
Degreasing parts, precision cleaning of high-value componets.
A wide range of industries for the extraction of natural products for the food additives (such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc), drugs (such as artemisia annua vegerarian, magnolia, angelia, etc), health care (such as sea buckthorn, samara, pomegranate, lycopene, etc).
Free Download WordPress ThemesDownload Premium WordPress Themes FreeDownload WordPress ThemesDownload WordPress Themesudemy course download freedownload mobile firmwarePremium WordPress Themes Downloadfree download udemy course
-
-
-
300L supercritical fluid extraction equipment technical parameters:
Model
Extraction capacity
Pressure
Temperature range
Combining form
TOP630-40-300
50L×6
400bar
RT-75℃
Six extracting pot-three separating pot circulation mode.
TOP320-35-300
100L×3
350bar
RT-75℃
Three extracting pot-two separating pot circulation mode.
- 300L supercritical co2 extraction machine
- 300L supercritical co2 extraction machine design
- Supercritical co2 extraction machine effect picture
- Supercritical co2 extraction machine effect picture
-
