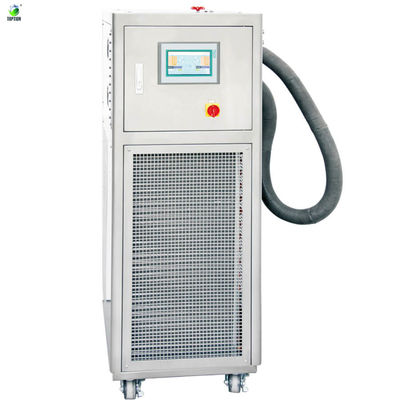

50Hz/60Hz Highly Dynamic Temperature Control System PID Control
Detail Information Place of Origin China Brand Name TOPTION Control Type: PID Cooling Element: Peltier Element Display Type: Digital Frequency: 50/60 Hz Heating Element: Resistance Wire Material: Stainless…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Control Type: | PID |
| Cooling Element: | Peltier Element |
| Display Type: | Digital |
| Frequency: | 50/60 Hz |
| Heating Element: | Resistance Wire |
| Material: | Stainless Steel |
| Power Source: | Electric |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | 60hz highly dynamic temperature control system , 50hz highly dynamic temperature control system , pid control temperature control equipment |
-
-
Highly Dynamic Temperature Control System
Typical application
1. Reactor systems autoclaves
2. Pilot systems
3. Mini plant systems
4. Scale up for operational development
5. Double wall reactors
6. Distillation systems
7. Material testing
8. Combinational chemistry
9. Semiconductor industry
10. Vacuum chambers
Advantages & Functions
1. Working temp from -120℃ to +350℃.
2. Previously unachievable performance.
3. Intelligent temperature control.
4. Maximum process stability and reproducibility.
5. Adopt plate heat exchanger, Pipeline heating, the fastest heating and cooling rates.
6. High cooling power from 0.5 to1200KW.
7. Large temperature range without fluid change.
8. Closed system, extend thermal fluid lifetime.
9. 7-inch, 10-inch color TFT touch screen display.
10. Comprehensive warning and safety functions.
11. Rapid cooling down from high temperature (from 300℃).
12. Use magnetic drive pump, solve the circulation pump leakage.
Technical parameters of highly dynamic temperature control system SUNDI Series:
Model
SUNDI-320
SUNDI-420W
SUNDI-430W
Temperature range ℃
-30℃~180℃
-45℃~180℃
-45℃~180℃
Control Mode
Feed forward PID + Our special dynamic control calculation, PLC controller
Temp. control
Option: process temperature control or jacket oil temperature control
Temp. difference
Set or control the temperature difference between jacket oil and raw material process
Program Editor
20 programs, each program can edit 45 steps.
Communication protocol
MODBUS RTU Protocol, RS 485 Interface
Temperature feedback
Heat-conducting medium: PT100 Raw material process: PT100
Temp. accuracy
±1℃
±1℃
±1℃
Heating power
2kW
2kW
3kW
Cooling capacity
180℃
1.5kW
1.8kW
3kW
50℃
1.5kW
1.8kW
3kW
0℃
1.5kW
1.8kW
3kW
-5℃
0.9kW
1.2kW
2kW
-20℃
0.6kW
1kW
1.5kW
-35℃
0.3kW
0.5kW
Circulation pump
Max10L/min
Max10L/min
Max20L/min
0.8BAR
0.8BAR
2BAR
Compressor
Embraco
Embraco
France
Expansion valve
Danfoss
Danfoss
Danfoss
Operation Panel
7-inch color touch screen controller, temperature curve record, data export to excel format.
Safety protection
Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device,
liquid low level protection, high temperature protection and temperature fault protection.
Closed
The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,
circulation system
pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Refrigerant
R-404A
Connection size
DN-15 or M24*1.5
DN-15 or M24*1.5
DN-15 or M24*1.5
Water-cooled type W
450L/H
550L/H
(cooling water at 20℃)
1.5bar~4bar
1.5bar~4bar
Dimension
350*550*620
350*550*620
400*600*1050
Weight
55kg
55kg
85kg
Power
AC 220V 50HZ
AC 380V 50HZ
AC 380V 50HZ
2.9kW (max)
3.1kW (max)
4.5kW (max)
Case material
SUS 304
SUS 304
SUS 304
Optional
Optional Ethernet interface, configure PC operating software
Optional
Optional outside touch screen display controller (separated), the communication line distance is 10 meter.
Optional power
100V 50HZsingle-phase, 110V 60HZ single-phase, 230V 60HZ single-phase,
220V 60HZ three-phase, 440V~480V 60HZ three-phase
-10℃~200℃ highly dynamic temperature control system
-25℃~200℃ highly dynamic temperature control system
-25℃~300℃ highly dynamic temperature control system
-45℃~200℃ highly dynamic temperature control system
Please contact info@toption-china.com to get detail technical parameters and Temperature Control System PDF Catalogue
-
-
-
-50℃~250℃, -60℃~200℃,-70℃~250℃,-80℃~250℃ Dynamic Temperature Control System
1. Control mode: Feedforward PID + Our special dynamic control calculation, PLC controller.
2. Temp. control: Option: process temperature control or jacket oil temperature control.
3. Temp. feedback: Heat-conducting medium: PT100, Raw material process: PT100.
4. Temp. accuracy +-1℃.
5. 7-inch color touch screen controller, temperature curve record, data export to excel format.
6. The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Technical parameters of -50℃~250℃ highly dynamic temperature control system:
- Structure design
1. Only the heat conduction medium in the expansion container touches the oxygen in the air. ( The container temperature is limited to 60℃ ).
2. No volatilization of the heat conducting medium at high temperature.
3. No need to change the heat conducting medium,
4. Continuous control of the temperature of the below range, can be done without rising the pressure : -90℃ ~ 195℃, -70℃ ~ 220℃, -55℃ ~ 250℃, -25℃ ~ 300℃.
- Display function
- Process Control
Change the control settings of the method, the response as soon as possible in the process of the system lags behind, be the smallest system overshoot.
- High repeatability of results control
- Circulation pump
High temperature resistant low temperature magnetic drive pump or a leak-free high and low temperature shield-driven pump, reduce the risk of system leakage. At the same time the system has the advantages of low noise and big traffic flow.
- Electronic expansion valve
- Data interface and software standard configuration:
-PT100 temperature sensor input interface.
-USB export data interface.
-RS485 communication interface ( MODBUS protocol).
-Alarm output.
- Security
Phase sequence, leakage protection, refrigeration system high and low voltage protection, overload the pump, compressor overload, high and low level, two independent over-temperature protection, water protection, protection of the circulation line shut.
- Connecting Pipe
Learn more detail information welcome contact info@toption-china.com 24h/7days online service.
-
-
-
-90℃~250℃, -100℃~100℃, -25℃~200℃, -40℃~200℃ heating and cooling circulators
Technical parameters of -90℃~250℃ heating & cooling circulators:
-
