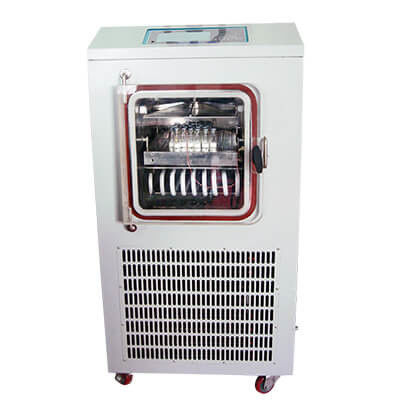

2000W-5000W Vacuum Freeze Drying Machine Lyophilization Equipment

• Vacuum Freeze Drying Machine Lyophilizer

  TOPTION TPV-10FD/30FD/50FD series vacuum freeze dryers are electric heating type freeze drying machine (patent machine).

  • Products can be freeze dried in situ. It changes the complex operation and prevent sample pollution,and make drying automation.
  • These models has shelf heating and programmable functions.They can records freeze drying curves, data can be output by U-disk.
  • User can clearly view the freeze drying process.



  TPV-10FD lyophilizer



  TPV-10FD top-press lyophilizer



  TPV-30FD lyophilizer

  Technical parameters of vacuum freeze drying equipment:

  Vacuum freeze drying machine	TPV-10FD	TPV-10GD	TPV-30FD	TPV-50FD
  Freeze drying area	0.2 ㎡	0.1 ㎡	0.4 ㎡	0.6 ㎡
  Condenser temperature	<-56℃ (no-loading),option <-80℃ (no-loading)
  Vacuum degree	≤ 10Pa  (no-load)
  Water capture capacity	3-5Kg/24h		＞ 6Kg/24h	＞ 10Kg/24h
  Partition board size	400×270mm*2	400×270mm*1	300×340mm*4	300×340mm*6
  Power	2000W		3000W	5000W
  Weight	260kg		400kg	400kg
  Dimension(mm)	750×800×1390		700×850×1230	700×850×1400
  Bulk capacity Thickness: 10mm	2L	1L	4L	6L
  Vial loading number (pcs)	Ф12mm:1554	Ф12mm:777	Ф12mm:2916	Ф12mm:2916
  	Ф16mm:868	Ф16mm:434	Ф16mm:1600	Ф16mm:1600
  	Ф22mm:440	Ф22mm:220	Ф22mm:872	Ф22mm:872



  TPV-10FD vacuum freeze dryer



  TPV-30FD freeze dryer



  TPV-50FD freeze dryer

  Main features of TOPTION this set electric heating freeze dryer:

  1.7 inch embedded integrated color touch-screen. PLC controlling. Display drying curve.



  LCD touch screen freeze dryer



  PLC control system of freeze drying machine

  2. The machine control system can save 40 freeze-drying scheme, each scheme can be set up 40 segments of temperature parameter values.

  3. Shelf has refrigeration and heating function. Products pre-freezing and drying process both finished in drying chamber.No need of low temperature freezer, no pollution.At the same time provide guarantee conditions for automated production.





  4. Control system automatically records the data and generate the freeze-drying curves. With USB communication interface, experimental data can be output by a USB flash disk.



  5. Operating system has manual operation and automatic operation, two working modes, to improve the selectivity of freeze-drying process.

  6. Drying chamber door use colorless transparent organic glass , use can clearly observe the sample during the process of freeze-drying.

  7. Unique design of vacuum air channel, condenser has better and uniform water capture capacity.

  8. Have password protection function, to ensure the safe and reliable operation.

  9. Optional charging valve, filling dry inert gas.

  10. Optional manifold ports for flask connection, round bottom flask and wide-neck flask.

  11. Optional eutectic point test functions, convenient for getting freeze-drying process of the sample.

  12. Optional remote monitoring and remote operation functions, convenient for user operation in different conditions.rent conditions.

  13. Vacuum regulation device is optional.





  Vacuum freeze drying machine application:













Silicone Oil Heating Vacuum Freeze Drying Equipment

• TPV-20F/30F/50F/100F (silicon oil heating) freeze dryer , freezing and drying process made in situ.
• It changes the complex operation and prevent sample pollution,and make drying automation. These models has shelf heating and programmable functions.
• They can records freeze drying curves, data can be output by U-disk.
• User can clearly view the freeze drying process.

Technical parameters of vacuum freeze drying machine:

Silicone oil heating vacuum freeze dryer advantages:

1.Pre-Freezing and drying process are both finished on shelf.

2. Shelf temperature uniformity ≤ ±1℃ , with uniform drying effect.

3. Shelf temperature adjustable , controlled, suitable for pilot and production.  Square tray easy to operate and clean.

4. Freeze drying parameter can be changed during freeze dryer running, and records final drying data.

5. 7 inch embedded integrated color touch-screen. PLC controlling. Display drying curve.

6. With charging valve, to fill dry inert gas.

7. Drying chamber door using colorless transparent organic glass, user can clearly view products freeze-drying process.

8. Optional eutectic point test functions, convenient for getting freeze-drying process of the sample.

9. Optional remote monitoring and remote operation functions, convenient for user operation in different conditions.

10. Vacuum regulation device is optional.

Industrial Lyophilizer

• TPV-200F/300F silicon oil heating freeze dryer

TOPTION this lyophilizer is applicable to: health care products, fruits, vegetables, and Chinese herbal medicine freeze-dried.

1. TPV-200F/300F freeze dryer use double color touch screen and PLC as control center ,control system stable and reliable.

2. Can store 33groups of freeze drying program , and each program can be set up 36 segments.

3. Can display freeze drying curve and automatically records data.

4. Freeze drying data can be output by USB flask disk. This model is suitable for pilot scale and small scale production.

5. TPV-200F/300F model freeze dryer, with two compressors as cascade refrigeration , condenser temperature can reach <-75℃ .

6. Samples can be frozen and drying on shelf directly. With air cooling unit, easy to install and operate.

7. Two types: standard type and top press type.

• TPV-200FT/300FT silicon oil heating freeze dryer – applicable to pharmaceutical industry

1.TPV-200FT/300FT freeze dryer use double color touch screen and PLC as control center ,control system stable and reliable.

2.Can store 36groups of freeze drying program , and each program can be set up 36 segments. It can display freeze drying curve and automatically records data.Freeze drying data can be output by USB flask disk. This model is suitable for pilot scale and small scale production.

3. Have two compressors as cascade refrigeration , condenser temperature can reach <-70℃ .

4. Samples can be frozen and drying on shelf directly. With air cooling unit, easy to install and operate.

5. Two types:standard type and top press type.

Main features of this professional pharmaceutical freeze drying equipment:

1.Pre-Freezing and drying process are both finished on shelf, simple drying process.

2. Silicone oil circulatory medium, high accuracy of temperature control, shelf difference ≤ 1℃,  uniform drying effect.

3. Shelf temp. could be adjusted, controlled, groped, pilot and industrial process.

4. Condenser separated from drying chamber ,better water capture capability and shorter drying  time.

5. Touch screen operation, PLC control, display drying curve.

6. Square tray is not easy out of shape, convenient operating and clean.

7. Optional charging valve, filling dry inert gas.

8. Optional eutectic point test functions.

9. Optional PC software to realize the remote control.
