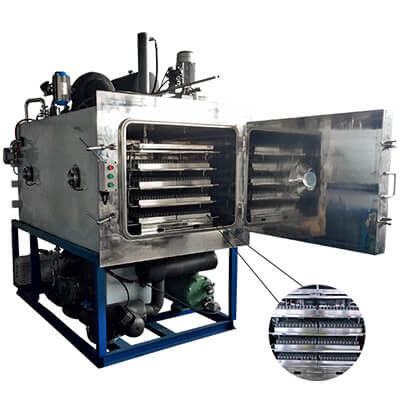

GMP Industrial Lyophilizer Pharmaceutical Toption Freeze Drying Pharmaceuticals
Detail Information Place of Origin China Brand Name TOPTION Capacity: Determined By Model Catching Water Capacity: Determined By Model Color: Grey Control System: PLC Cooling Method: Air Cooling…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Capacity: | Determined By Model |
| Catching Water Capacity: | Determined By Model |
| Color: | Grey |
| Control System: | PLC |
| Cooling Method: | Air Cooling |
| Door Type: | Side Opening |
| Model: | FD-100 |
| Total Shelf Area: | 1.04㎡ |
| Type: | Top-press |
| Weight: | Determined By Model |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | gmp industrial lyophilizer , lyophilizer pharmaceutical toption , toption freeze drying pharmaceuticals |
-
-
Industrial Lyophilizer Freeze Drying Equipment
GZLY suitable for medical and pharmaceutical vacuum freeze dryer
- GZLY series freeze dryers use double color touch screen and PLC as control center ,control system stable and reliable. it can store 33groups of freeze drying program , and each program can be set up 36 segments.
- It can display freeze drying curve and automatically records data. Freeze drying data can be output by USB flask disk. This model is suitable for pilot scale and small scale production.
- GZLY series freeze dryers use Bitzer refrigeration unit,condenser temperature can reach<-75℃ , performance stable . It meets national relative standards ,according to GMP and implementation guidelines of GMP, and GB/T522 6.1-1996.
Lyophilizer GZLY-1
GZLY-2
GZLY-3
GZLY-5
GZLY-10
GZLY-15
GZLY-20
GZLY-30
GZLY-40
Freeze drying area
1.152 ㎡
2.16 ㎡
3.24 ㎡
5.25 ㎡
10.5 ㎡
15 ㎡
20.2 ㎡
30 ㎡
40 ㎡
Condenser temperature
< -75℃ (no-load)
Partition board temperature
≤ -55℃ (no-load)
control accuracy
±1℃
Vacuum degree
< 5Pa (no-load)
Cooling method
water cooling
Water capture capacity
20Kg/24h
40Kg/24h
60Kg/24h
100kg/24h
> 200kg/24h
> 300kg/24h
400kg/24h
600kg/24h
800kg/24h
Partition board size
600 x 480 x 20mm*4+1
600 x 900 x 20mm*4+1
600 x 900 x 20mm*6+1
750 x 1000 x 20mm*7+1
1520 x 990mm*7+1
1520 x 990mm*10+1
1520 x 1210mm*11+1
1500 x 1800mm*11+1
1500 x 1800mm*15+1
Installed Powe
15kw
15kw
18kw
20kw
50kw
83kw
105
145
170
Weight
1500kg
2600kg
2800kg
4200kg
7000kg
9000kg
11000kg
15000kg
20000kg
Dimension(mm)
2500x1100x2000
3500x1300x2000
2800x1200x2500
4000x1500x2500
6700×2100×3600
6500x2300x3400
7400x2300x3800
9200x2400x4000
9400x2400x4500
Bulk capacity Thickness:10mm
10L
20L
30L
50L
200L
300L
450L
600L
850L
Vial loading
number (pcs)Ф12mm:8400
Ф12mm:12600
Ф12mm:16000
Ф12mm:35000
Ф12mm:65300
Ф12mm:95700
Ф12mm:130400
Ф12mm:187700
Ф12mm:56000
Ф16mm:4706
Ф16mm:6800
Ф16mm:10000
Ф16mm:24800
Ф16mm:46400
Ф16mm:66400
Ф16mm:92800
Ф16mm:133600
Ф16mm:82200
Ф22mm:2428
Ф22mm:3600
Ф22mm:5300
Ф22mm:12700
Ф22mm:23700
Ф22mm:33900
Ф22mm:47400
Ф22mm:68300
Ф22mm:93000
GZL series vacuum freeze dryer
- Pre-Freezing and drying process are both finished on shelf.
- Silicon oil as circulation medium, with high accuracy of temperature control. Shelf temperature uniformity ≤ 1℃ , with uniform drying effect.
- Shelf temperature adjustable, controlled, suitable for pilot and production.
- Drying chamber and condenser as separated structure, with better water capture capacity and shorter drying time.
- Touch screen operation,PLC control, display drying curve.
- Square tray easy to operate and clean.
- With charging valve, to fill dry inert gas.
- Optional eutectic point test functions.
- Optional PC software to realize the remote control.
- Ozone disinfection function is optional.
Lyophilizer GZL-1
GZL-2
GZL-3
GZL-5
GZL-10
GZL-15
GZL-20
GZL-30
GZL-40
Freeze drying area
1.152 ㎡
2.16 ㎡
3.24 ㎡
5.25 ㎡
10.5 ㎡
15 ㎡
20.2 ㎡
30 ㎡
40 ㎡
Condenser temperature
< -75℃ (no-load)
Partition board temperature
≤ -55℃ (no-load)
Control accuracy
±1℃
Vacuum degree
< 5Pa (no-load)
Cooling method
water cooling
Water capture capacity
15Kg/24h
30Kg/24h
45Kg/24h
100kg/24h
> 200kg/24h
> 300kg/24h
400kg/24h
600kg/24h
800kg/24h
Partition board size
600 x 480 x 20mm*4+1
600 x 900 x 20mm*4+1
600 x 900 x 20mm*6+1
750 x 1000 x 20mm*7+1
1520 x 990mm*7+1
1520 x 990mm*10+1
1520 x 1210mm*11+1
1500 x 1800mm*11+1
1500 x 1800mm*15+1
Installed Powe
12kw
14kw
16kw
20kw
50kw
75kw
100
145
170
Weight
1200kg
2000kg
2800kg
3500kg
6500kg
8000kg
95000kg
15000kg
20000kg
Dimension(mm)
2500x1100x2000
3500x1300x2000
2800x1200x2500
4000x1500x2500
6700×2100×3600
6500x2300x3400
7400x2300x3800
9200x2400x4000
9400x2400x4500
Bulk capacity
Thickness:10mm10L
20L
30L
50L
200L
300L
450L
600L
850L
Vial loading
number (pcs)Ф12mm:8400
Ф12mm:12600
Ф12mm:16000
Ф12mm:35000
Ф12mm:65300
Ф12mm:95700
Ф12mm:130400
Ф12mm:187700
Ф12mm:256000
Ф16mm:4706
Ф16mm:6800
Ф16mm:10000
Ф16mm:24800
Ф16mm:46400
Ф16mm:66400
Ф16mm:92800
Ф16mm:133600
Ф16mm:182200
Ф22mm:2428
Ф22mm:3600
Ф22mm:5300
Ф22mm:12700
Ф22mm:23700
Ф22mm:33900
Ф22mm:47400
Ф22mm:68300
Ф22mm:93000
-
-
-
Customizable CIP & SIP System Of Vacuum Freeze Drying Equipment
CIP and SIP system freeze dryer is designed based on mature technology, use top quality material and parts which is widely accepted in pharmaceutical industry. Its manufacturing process use the most advanced technology, equipment totally meet CGMP standard, software meets 21 CFR Part 11 standard.
- Freeze drying chamber / door / shelf
Freeze drying chamber is a kind of pressure vessel and products finish its vacuum freeze drying process in it. Chamber body generally use stainless steel square box, this reasonable structure design could make clean be more convenient and reduce the blind angle.
Put products in shelf, through freezing medium control temperature up/down,to achieve prefreezing and sublimation dehydration, besides, the stoppering can be fulfilled by shelves before products exiting from the chamber. Use indirect cooling and heating method. Every shelf through special design, produce and processing, so could achieve uniform cooling and heating.
- Refrigerating system / Vacuum system / Circulating system
Cooling system is consist of refrigerating compressor, water cooled condenser, throttle valve, evaporator,etc, provide cooling source for freeze drying chamber and vacuum condenser.
Circulating system through freezing medium to control shelf temperature, circulating pump drive freezing medium circulating.
- Isolation Valve
The isolation valve allows proceeding with the product loading, unloading and freezing while the condenser is defrosted. In addition, the isolation valve can be used to test the degree of product drying by measuring the pressure rising during a preset closing time.
- Hydraulic System/ CIP/ SIP
This system is used for feeding and discharging materials through lifting and dropping the shelves. At the same time, it is good for cleaning the chamber. Besides, the stopper can be pressed into penicillin bottle. It is also used for freezing and drying scattering material.
CIP could run automatically or manually through control program, whole sterilization process finish automatically.
Whole parts meet FDA/ CGMP standard.
-
-
-
Food Industrial Lyophilizer
GZVF series freeze dryers use double color touch screen and PLC as control center ,control system stable and reliable. it can store 33groups of freeze drying program , and each program can be set up 36 segments. It can display freeze drying curve and automatically records data.Freeze drying data can be output by USB flask disk.
GZVF series freeze dryers use Bitzer refrigeration unit,condenser temperature can reach < -75℃ , performance stable .This model is suitable for production.
Food lyophilizer
GZVF-2
GZVF-5
GZVF-12
GZVF-16
GZVF-33
GZVF-44
Drying chamber
Shelf area(m 2 )
2.4
5.9
12
16
33
44
Drying chamber size(m)
Φ0.75 * 0.9
Φ1.1 * 1.2
Φ1.4 * 1.5
Φ1.5 * 2.1
Φ1600 * 3600
Φ1800 * 3600
Shelf layers
6+1
8+1
12+1
12+1
14+1
14+1
Shelf size(mm)
500 * 800
1050 * 700
1200 * 800
1800 * 800
3100 * 800
3600 * 1000
Shelf spacing(mm)
70
70
70
75
75
758
Trolley number(set)
N/A
1
2
Trolley number(set)
N/A
1
2
Tray size(mm)
350X500
350X500
400X600
400X600
400X500
400X500
Trays number (pcs)
24
64
96
144
336
448
Heating way
heat conductive oil circulation
Temperature range
room temperature~120
control accuracy
±1℃
condenser
Max. Ice capacity Kg)
24
75
150
225
450
600
Ice capacity(kg/day)
20
60
100
150
300
400
Lowest temperature(℃)
-85
Temperature lowing style
direct evaporation
Defrosting method
warm water spray
basic parameters
final vacuum(Pa)
5
Installed power(Kw)
6
12
25
37
72
104
cooling water(m3/h)
air cooling
8 or air cooling
15 or air cooling
22 or air cooling
50
60
cooling water pipe dia
无 N/A
1 1/4″or N/A
1 1/2″ or N/A
1 1/2″ or N/A
2″
2″
dimension(m)
1.5×1.5
3×2
4×2.2
5×2.3
8×2.6
9×3.2
height(m)
2
2.2
2.3
2.3
2.6
3.2
weight
1.3
2.5
4
6
15
20
Main features of food & fruit industrial freeze drying equipment:
1.Vertical cylindrical condenser,compact structure,with good water capture capacity, no dead corner, easy for defrosting and cleaning.
2. Refrigeration system protection control device: adopt international famous brand products, accurate, stable, safe and reliable.
3. High pressure protection system: when the system exhaust pressure more than allowed, refrigeration unit running will be automatically cut off , to prevent accidents.
4. Middle pressure regulation system: in the double-stage refrigeration system, proper middle pressure are very important for operation performance and life of the refrigeration system. When middle pressure below the set value, the system will automatically start to adjust. Create conditions for the realization of the lyophilizer unmanned operation.
5. Oil pressure protection system: when the long time operation of the refrigerator, monitor the hydraulic pressure of the refrigerator, prevent refrigerator damage because of oil lack.
6. The motor temperature protection system: when the refrigerator motor temperature higher than the set value, in order to protect the refrigerator, the system will automatically stop the operation of the refrigerator.
7. Oil return at low temperature regulating system: when refrigerator works under very low evaporation temperature for long time , how to make the refrigeration oil well back to the crankcase is very important (lack of refrigeration oil in the system often causes refrigerator “burned”). When the crankcase lack of refrigeration oil, the system automatically start to establish proper oil level in the crankcase. Create conditions for the realization of the lyophilizer unmanned operation.
8. Exhaust temperature control system: when refrigerator exhaust temperature is too high, the system automatically start cooling system, to prevent the high pressure part of overtemperature operation. Create conditions for the realization of the lyophilizer unmanned operation.
9. Wet stroke prevention control system: when the high load operation of the refrigerator, the system can automatically go in the process of adjustment, prevent the wet stroke even “liquid impact phenomenon”. Create conditions for the realization of the lyophilizer unmanned operation.
10. Automatic liquid collection device: when the refrigerator is in standby mode, the device will automatically run , to collect stranded refrigerant in the system to storage tank, in order to start the freeze dryer again.
11. The machine start protection: when equipment has all security conditions , the machine will be able to start running.
12. whole machine structure longitudinal, front and back split type (convenient for transport and placing ).
13. Ozone disinfection function is optional.
Customer case of freeze drying equipment
Customizable CIP & SIP System Of Vacuum Freeze Drying Equipment
CIP and SIP system freeze dryer is designed based on mature technology, use top quality material and parts which is widely accepted in pharmaceutical industry. Its manufacturing process use the most advanced technology, equipment totally meet CGMP standard, software meets 21 CFR Part 11 standard.
- Freeze drying chamber / door / shelf
Freeze drying chamber is a kind of pressure vessel and products finish its vacuum freeze drying process in it. Chamber body generally use stainless steel square box, this reasonable structure design could make clean be more convenient and reduce the blind angle.
Put products in shelf, through freezing medium control temperature up/down,to achieve prefreezing and sublimation dehydration, besides, the stoppering can be fulfilled by shelves before products exiting from the chamber. Use indirect cooling and heating method. Every shelf through special design, produce and processing, so could achieve uniform cooling and heating.
- Refrigerating system / Vacuum system / Circulating system
Cooling system is consist of refrigerating compressor, water cooled condenser, throttle valve, evaporator,etc, provide cooling source for freeze drying chamber and vacuum condenser.
Circulating system through freezing medium to control shelf temperature, circulating pump drive freezing medium circulating.
- Isolation Valve
The isolation valve allows proceeding with the product loading, unloading and freezing while the condenser is defrosted. In addition, the isolation valve can be used to test the degree of product drying by measuring the pressure rising during a preset closing time.
- Hydraulic System/ CIP/ SIP
This system is used for feeding and discharging materials through lifting and dropping the shelves. At the same time, it is good for cleaning the chamber. Besides, the stopper can be pressed into penicillin bottle. It is also used for freezing and drying scattering material.
CIP could run automatically or manually through control program, whole sterilization process finish automatically.
Whole parts meet FDA/ CGMP standard.
-
