Vacuum Small Freeze Dryer Machine Laboratory CE ISO SGS
Detail Information Place of Origin China Brand Name TOPTION Color: Grey Condenser Type: Peltier-cooled Control Method: PLC Cooling Method: AIR COOLING Display: LCD Equipment: Vacuum Freeze Dryer Model:…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Color: | Grey |
| Condenser Type: | Peltier-cooled |
| Control Method: | PLC |
| Cooling Method: | AIR COOLING |
| Display: | LCD |
| Equipment: | Vacuum Freeze Dryer |
| Model: | FreeZone 2.5 Plus |
| Power: | Electronic,220V/50HZ |
| Standard: | CE/ISO/SGS |
| Usage: | Laboratory Vacuum Freeze Dryer |
| Vacuum Pump Included: | YES |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | small freeze dryer machine laboratory , freeze dryer machine laboratory ce , vacuum freeze dry machine |
-
-

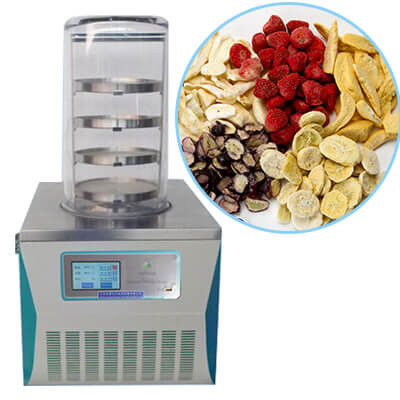

Small Freeze Dryer
Vacuum freeze drying equipment, is also named Lyophilizer which is the technique for pre-freezing the watery material first, then make moisture sublimation under the vacuum.
The biological and chemistry of freeze dried goods is unchanged, which is easy to long term time storage. The lyophilized goods can resume the original status when water them.
So freeze-drying technique can be applied to the fields of medicine, foodstuff, chemistry and biological science, etc.

- TOPT-10A Vacuum Freeze Dryer

- TOPT-10B Freeze Dryer

- TOPT-10C Freeze Dryer

- TOPT-10D Freeze Dryer

- TOPT-10E Freeze Dryer
- TOPT-10A Standard type: The samples will be dried after be pre-frozen.
- TOPT-10B Top-press type: Pre-freezing and drying the material in the bottle, then fasten down the bottle cap by manual under the vacuum condition after the freeze drying, which is equivalent to the vacuum package.
- TOPT-1OC Manifold type: The samples inside of special bottles are connected with freeze drying cover by rubber valve after pre-frozen. The customer can change different type special bottles any time during freeze drying process through switching valve, so different kind of samples can be freeze dried together, and 8 different capacity bottles can be hang together also, which is high drying efficiency.
- TOPT-10E Manifold and top-press type: The freeze drying cover can hang special bottles to freeze dry samples together with freeze drying of Penicillin bottles, which the freeze drying efficiency will be increased.
Technical parameters of TOPTION small vacuum freeze drying machine:
Model
TOPT-10A
TOPT-10B
TOPT-10C
TOPT-10D
Cold trap temp(℃)
-55/-80 (without loading)
Vacuum degree(Pa)
≤10
Drying area(m2)
0.12
0.075
0.12
0.075
Water capture capability(Kg/24h)
3
3
3
3
Tray Layer
4
3
4
3
Tray specification
(ϕ*h)mm
200×20
200×20
200×20
200×20
Load material/tray(ml)
300
300
300
300
Drying time(h)
24
Manifold
/
/
8
8
External dimension (W*D*H)mm
582*625*530
- How to install vacuum freeze dryer
Main features of TOPT-10 series benchtop lyophilizer:
1.Imported compressor, CFC Free refrigeration.
2. Big opening of condenser , condenser has pre-freeze function.
3. The machine can store freeze-dried data for many times, experimental data can be output by a USB flash disk.
4. Touch screen as human-computer interface, Chinese (English) convertible interface, display drying curve.
5. Small volume, compact structure ,easy and convenient operation.
6. The international standard KF vacuum interface, with a variety of vacuum pump combination.
7. Condenser and operation panel are all stainless steel, corrosion resistant and easy to clean.
8. Pre-freeze shelf can work as a lead tube, speed up the drying speed.
9. Optional charging valve, filling dry inert gas.
10. Cascade refrigeration is optional , applied for -80℃ machine.
Application of vacuum freeze drying technology:
Customer case of vacuum freeze dryer:
Benchtop small vacuum freeze dryer, CE certification, support professional customize and OEM freeze drying equipment, factory visit welcome contact info@toption-china.com 24h/7days online service.
-
-
-
LED Commercial Lyophilizer
Compared with LCD touch screen display vacuum freeze dryer, this set freeze dryer could meet same freeze drying requirements, the goods be freeze dried under vacuum and low temperature condition, and easier for long term preservation, and they can be restored to the original state and maintain its chemical & biological characteristics after being watered.
This type benchtop vacuum freeze dryer is cheaper as it’s LED display type, so most suitable for school freeze drying, home use, or lab research want to save cost, etc.

- FD-10A Vacuum Freeze Dryer

- FD-10B Vacuum Freeze Dryer

- FD-10C Vacuum Freeze Dryer

- FD-10D Vacuum Freeze Dryer

- FD-10E Vacuum Freeze Dryer
Technical parameters of cheap freeze dryer:
Model
Unit
FD-10 Series Economical Freeze Dryer
Specification
Top-press
10B / 10D
Ordinary
10A /10C
Freeze-drying area
㎡
0.08
0.12
Cold trap temp
℃
<-55 (no-load)
Vacuum degree
Pa
<10 (no-load)
Water-capture capability
Kg/24h
3~4
Material tray
mm
¢180*3
¢200*4
Power
w
970
Dimension
mm
565*420*(360+430)
Material volume put in device (10mm)
L
0.8
1.2
¢12mm penicillin bottle
Pcs
560
920
¢16mm penicillin bottle
Pcs
285
480
¢22mm penicillin bottle
Pcs
165
260
Eggplant shaped bottle 100ml/250ml/500ml/1000ml
10D/ 10C have
10A/10B no
Main features of economical freeze drying equipment:
1.The machine adopts air cooled condensing closed compressor refrigeration system, cooling rapidly, freezing temperature is low and the moisture adsorption ability is strong. Temperature, vacuum degree display are digital type, accurate and intuitive.
2. Freeze drying goods adopt natural heating by air, guarantee the security of the sample.
3. Drying chamber adopts transparent organic glass, can observe the freeze-drying process, clear visual sample.
4. Host is equipped with a vacuum pump power plug, do not need to connect other power, easy to use.
5. Vacuum connection use international general standard clamp, convenient and reliable.
6. Stable performance, easy operation, low noise.
Application of vacuum freeze dryer:
-
