Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Detail Information Place of Origin China Brand Name TOPTION Features: Adjustable Temperature Control, Digital Display, Timer Function Accuracy: Varies Depending On Specific Equipment Capacity: Varies Depending On Specific…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Features: | Adjustable Temperature Control, Digital Display, Timer Function |
| Accuracy: | Varies Depending On Specific Equipment |
| Capacity: | Varies Depending On Specific Equipment |
| Certifications: | CE, ISO |
| Material: | Stainless Steel, Glass, Plastic |
| Power Source: | Electricity |
| Product Type: | Laboratory Equipment |
| Safety Features: | Overheat Protection, Automatic Shut-off |
| Temperature Range: | Room Temperature To 300°C |
| Usage: | For General Laboratory Experiments And Procedures |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | toption overhead stirrer lab mixer , toption lab magnetic stirrer , ce lab magnetic stirrer |
-
-
-

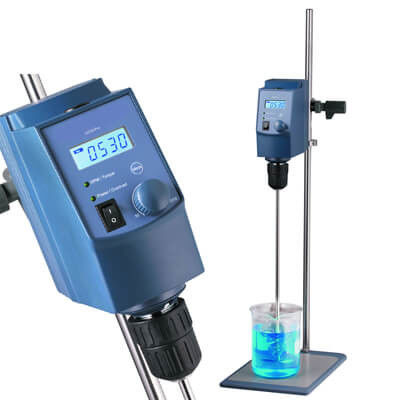

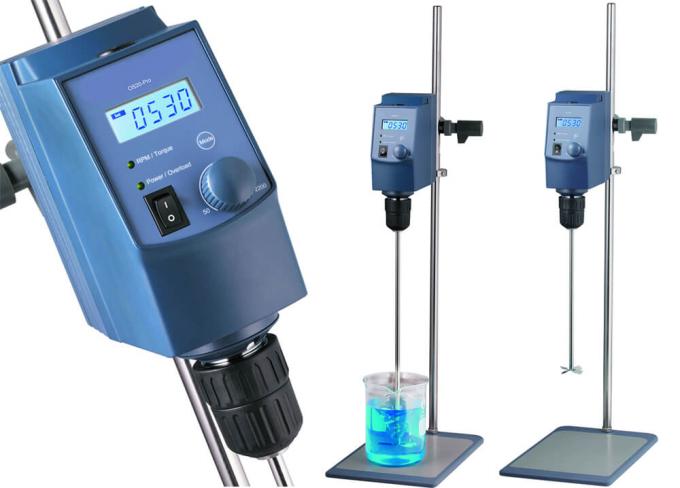

Overhead Stirrer
TOPTION overhead stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis, petrochemical industries, etc.
Specifications OS20-Pro OS20-Pro Max. stirring quantity[H2O] 20L 40L Power 70W 130W Motor type brushless DC motor brushless DC motor Motor input power 60W 120W Motor output power 50W 100W Speed range 50-2200rpm 50-2200rpm Speed display accuracy ±3rpm ±3rpm Speed display LCD LCD Torque display LCD LCD Voltage 100-220V, 50/60 Hz 100-220V, 50/60 Hz Overload protection display LED lights LED lights Max. torque 40Ncm 60Ncm Viscosity max. 10000mPas 50000mPas Chuck range diameter 0.5-10mm 0.5-10mm Dimension[W*D*H] 83*220*186mm 83*220*186mm Weight 2.8kg 2.8kg Protection class IP21 IP21 Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C, 80%RH Data connector RS232 RS232 - Main features of LCD digital overhead stirrer:
1.High reliability and outstanding performance.
2. LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.
3. Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity, changes.
4. Safety circuits allow for safe stop function in anti-stall or overload conditions.
5. Smooth operation prevents accidental spillage and splashing.
6. Provides constant speed even with changes in viscosities of the samples.
7. Remote function provide PC control and data transmission.
8. Availability of auto-restart function in case of power loss for overnight operations.
-
-
-
-

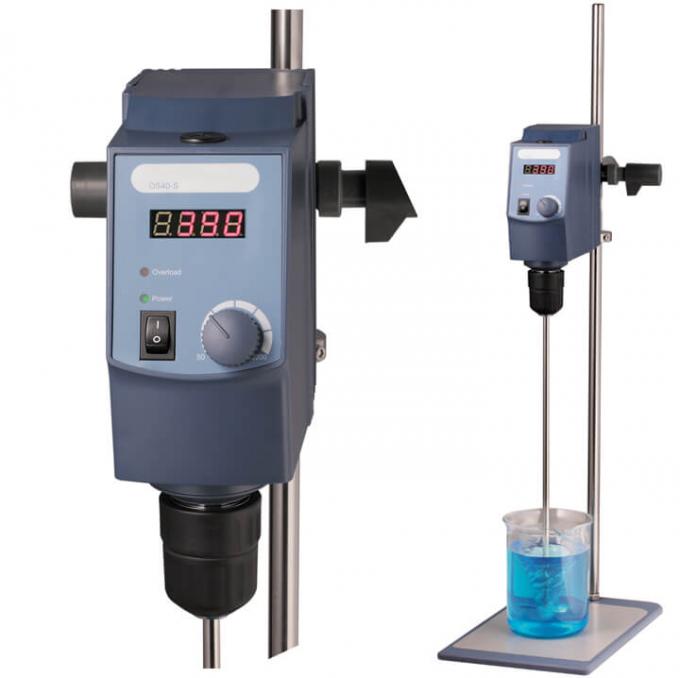

LED Overhead Stirrer
- High reliability and outstanding performance.
- A wide range of speed from 50 to 2200rpm.
- Brushless DC motor for long life, maintenance free and explosion proof.
- LED screen for monitoring actual speed.
- Safety circuits allow for safe stop function in anti-stall or overload conditions.
Specifications OS20-S OS40-S Max. stirring quantity(H2O) 20L 40L Motor type brushless DC motor brushless DC motor Motor input power 60W 120W Motor output power 50W 100W Voltage 100-220V, 50/60 Hz 100-220V, 50/60 Hz Power 70W 130W Speed range 50-2200rpm 50-2200rpm Speed display accuracy ±3rpm ±3rpm Speed display LED LED Overload protection display LED lights LED lights Max. torque 40Ncm 60Ncm Viscosity max. 10000mPas 50000mPas Chuck range diameter 0.5-10mm 0.5-10mm Dimension[W*H*D] 83*220*186mm 83*220*186mm Weight 2.8kg 2.8kg Protection class IP42 IP42 Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C 80%RH
-
-
-

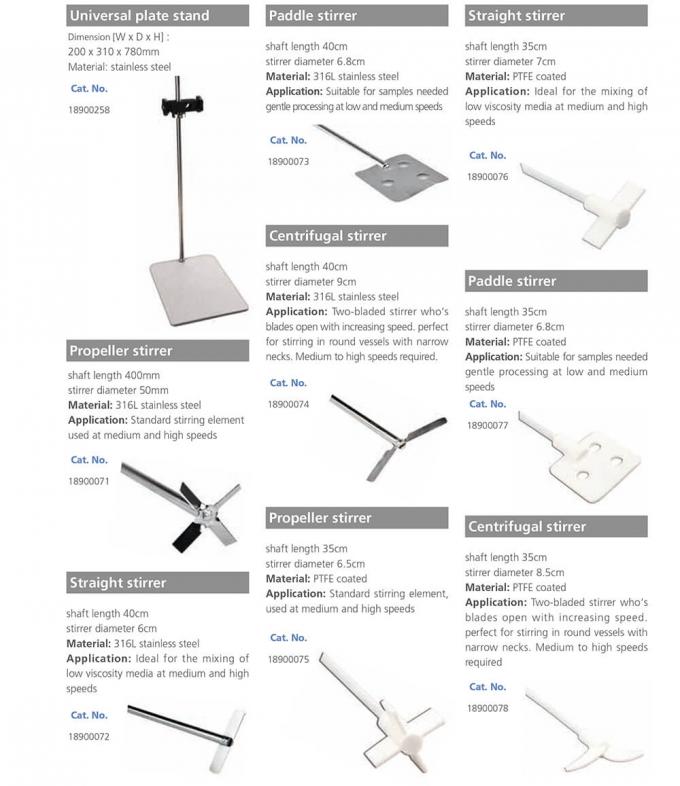

Accessories of overhead stirrers
-
