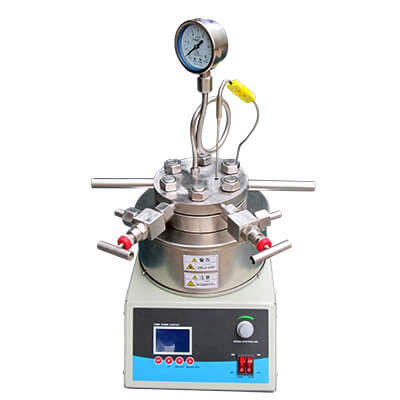

High Pressure Laboratory Reactor

TOPTION brand high pressure reactor is widely used in Chemistry, Pharmaceutical, Macromolecule, Metallurgy, Environmental Protection,etc, chemical process areas.

For instance: high pressure reaction, hydrogenation reaction, catalytic reaction, synthetic process, pharmaceutical synthesis, high pressure polymerization, nano synthesis, conditions screening, crystallization screening, combinatorial chemistry, biomass conversion, supercritical reaction, hydrothermal reaction, polymer synthesis, electrochemical corrosion testing, infrared detection,etc.

1. The maximum operating temperature of THR High Pressure Reactor is 250℃, use corrosive medium to do reaction, PTFE inner is optional, but its high temperature resistance is 180℃,so if the corrosive medium temperature is over 180℃, please choose other material reactors.

2. THR Series High Pressure Reactor adopt module heating method, which is quick heating and precise temperature control.

3. THR series high pressure laboratory reactor all are internal magnetic stirring, when magnetism arrive 250℃, degaussing phenomenon will happen, so if operating in over 250℃ condition, please choose TOPTION MHR Series High Pressure Reactor.

Technical parameters of high pressure reactor autoclave:

Structure description of lab scale high pressure reactor:

1. Pressure Gage – monitor working pressure in reactor.
2. Explosion Valve – Protect reactor over-pressure working.
3. Temperature Sensor Plug – monitor the temperature in reactor, connect with thermocouple.
4. Needle valve – air inflow, exhaust or sampling.
5. Handlebar – to teardown reactor lid.
6. Temperature measure jacket tube – used to insert temperature sensor.
7. Accused of bottom tube – used to sample during reaction.
8. Reactor lid lock screw – uniform distribution 6pcs in total, clockwise is tight, anticlockwise is loose.
9. Reactor body – coefficient of material charging is 80% of reactor whole volume, not suitable for all kinds of medium.

1. Temperature display – display real time temp. when working.
2. Rotating speed display – display real time rotating speed during working.
3. Indicator lamp display – function indicator when working.
4. Temp & time set key [T-Set] – used to set temperature, timing, and parameters which is related with temperature & time.
5. UpKey – add key.
6. Down key and self set key – reduce key and self set key.
7. Lift key and check key – shift key and check working time & timing.
8. Speed set key – used to set speed and related parameters.
9. Working and stop key – start or stop working.

MHR type high pressure reactor with magnetic coupling mechanical agitation

Technical parameters of MHR high pressure laboratory reactor:

Structure description of TOPTION brand MHR high pressure reactor:

1. Rotating speed and temperature control panel (LCD display and Nixie tube display are optional).
2. Internal heat collection heater.
3. Stainless steel reactor.
4. Air inlet valve ( sampling valve).
5. Air exhaust valve.
6. Principal axis cooling jacket.
7. The coupling magnetic steel.
8. Sensor insert mouth.
9. Pressure meter.
10. Transmission flexible shaft.
11. Flexible shaft support frame.
12. Dynamical system.
13. MHR high pressure reactor is suitable for small capacity sample reaction, high temp, big viscosity or magnetism medium.
14. Safety explosion protection valve is 12.5MPa, digital display pressure meter is optional.
15. Max working temp:300℃, module electric heating, heating quickly and control temp precise.

Parallel Pressure Reactor

Parallel micro high pressure reactor do research with more than one THR series high pressure reactor at the same time, each THR high pressure reactor is equipped with independent heating, stirring and pressure component, to ensure every high pressure reactor could do research independent under different temperature, pressure and stirring speed conditions, so as to screen experimental conditions more quickly and optimize it.

The reaction kettle bit and volume could be flexible combination, for ordinary, has 2, 4, 6, 8 parallel high pressure reactor, you could customize based on your actual experimental requirements.

Standard configuration of Parallel micro high pressure reactor

Technical parameters of THR (N) series high pressure reactor with magnetic stirrer
