Xenon Arc Lamp General Laboratory Equipment For Pilot Industry
Detail Information Place of Origin China Brand Name TOPTION Calibration: Up To 5 Points With Automatic Recognition Of USA/NIST And DIN Buffers Data Storage: Up To 2000 Data…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Calibration: | Up To 5 Points With Automatic Recognition Of USA/NIST And DIN Buffers |
| Data Storage: | Up To 2000 Data Points With Time And Date Stamp |
| Display: | LCD With Backlight |
| Model: | Orion Star A211 PH Benchtop Meter |
| Operating Temperature: | 0 To 50°C |
| Power: | Universal Power Adapter (100-240V, 50/60Hz) Or 4 AA Batteries |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | Pilot Industry Xenon Arc Lamp , Xenon Arc Lamp General Laboratory Equipment , Pilot Xenon Arc Lamp |
-
-

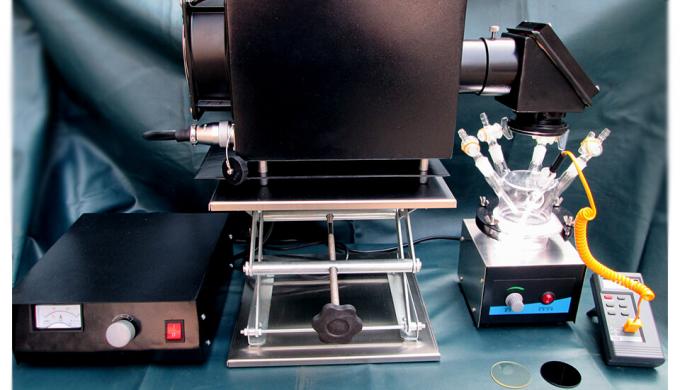

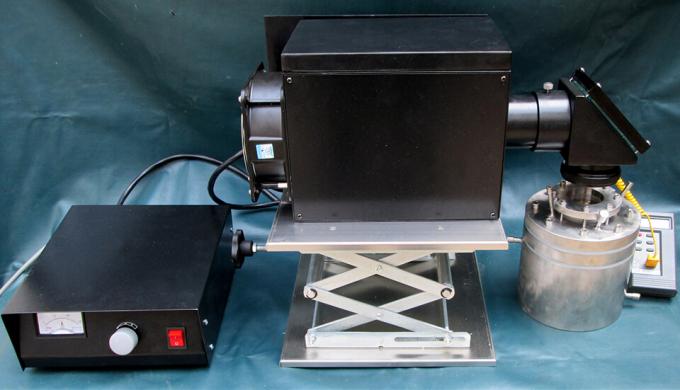

Xenon arc lamp
Tubular xenon light source is widely used in university laboratory and pilot industry, ultra stable kernel, stable performance, professional customization of xenon light source is welcome.
- Technical parameters of long arc xenon lamp
Long arc xenon lamp source Model TOPL-X 100/ TOPL-X300 / TOPL-X500 /TOPL-X1500W/TOPL-X2000 Power 100W, 300W, 500W, 1000W, 1500W, 2000W Simulative light source Visible light / sunlight Unique Features Most super stable kernel, operating interface is simple and easy Main peak wavelength range 400NM-780NM,full-wave band etc. Application Inside-illuminated photochemical reactor / match with reflector could do outside-illuminated reaction Suitable capacity 200ML, 250ML, 500ML, 1000ML, 2000ML, 5000ML(Optional) Lamp tube down-lead Single-ended / double-ended Special request Could equipped with light filtering liquid ,optical filter Power source 220V Note:TOPTION provide LCD touch screen software control operating function. - Application of long arc xenon lamp source
Long arc xenon lamp were used to visible light of photochemistry, photocatalysis, light degradation of pollutants and photochemical synthesis research field on the stage of exploration. The light source is flexible and can be used for a long time.

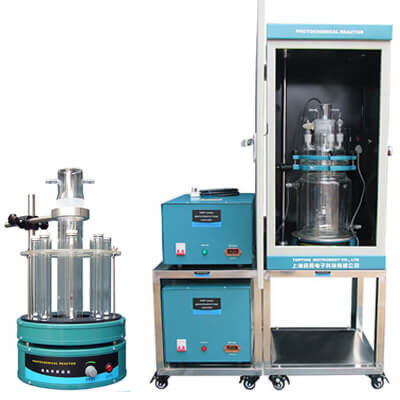

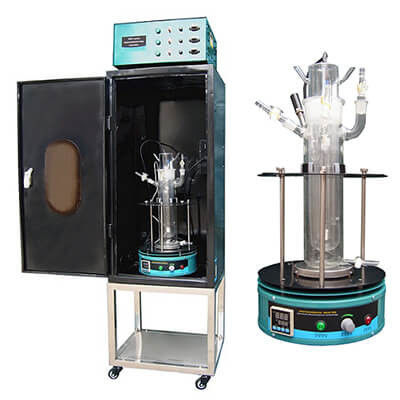

This type long arc xenon lamp source could be used together with TOPT-II, TOPT-V series photochemical reactor.
-
-
-

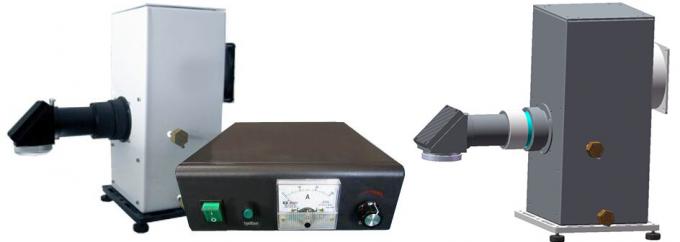

Spherical Xenon Light Source
Xenon parallel light source is a multi-function and eurytopic instrument, widely used in solar cell research and own high reputation from more than 300 laboratories. It could be used as photoelectric response type test device, surface photovoltaic spectroscopy, biological light, photocatalysis, surface defect analysis, UV exposure, UV solidify, liquid crystal material research, UV photopolymerization and UV fluorescence excitation research, etc.
TOP-X500 could be use alone, also could be used together with different test system. This light source adopt modular construction so that you could choose configuration more flexible.
This system is developed by TOPTION, which has stabilized current supply and equipped with different configuration could help you get different purpose, such as point light source illuminate, parallel light source illuminate, optical fiber output illuminate, and many more irradiation types.
- Technical parameters of Spherical Xenon Light Source
Main Specification TOP-X500 xenon lamp source Light output power average density (1Sun=1000W/m2 Solar constant)
Could adjust continuously (CEL-NP2000 measure)

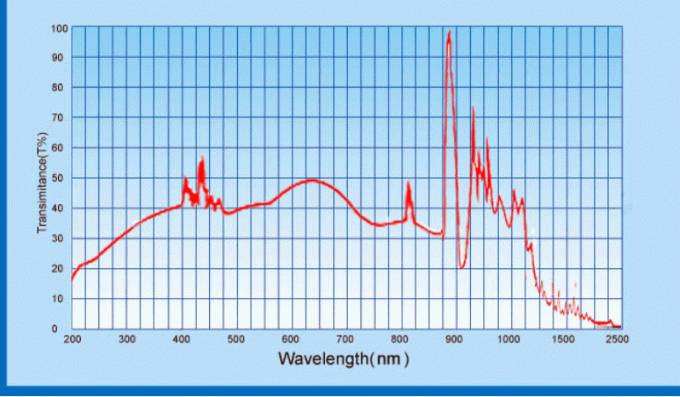

5~15 Sun Light total power output Radiant Output (Watts) 500W Luminescence spectrum range Output(nm) 320nm~2500nm Working facula diameter W (adjust continuously) 50mm Light output type Roundness facula Input power 500W Working voltage 220V Lamp window 50mm Bulb lifetime 600H Parallel light emitting angle Average 5 ° - Packaging list of Spherical Xenon Light Source

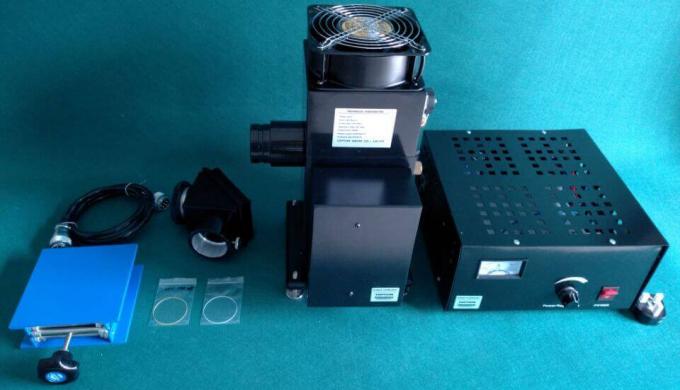

Item Quantity Unit Part Name 01 1 Set TOP-X500 Xenon Light Source Controller 02 1 Set Spherical Xenon Light Source Lamp Box 03 1 Pcs Power source connection wire 04 1 Piece 365nm optical filter 05 1 Piece Over 400nm optical filter 06 1 Piece High efficiency of total reflection optical filter (in rotary lens already have) 07 1 Pcs Product Specification 08 1 Pcs Product Warranty Card 09 1 Pcs Product Certificate 10 1 Pcs Product Packing List (include specification) - Advantages of xenon lamp source:
1.High reflective condensation aluminum reflector, which use aluminum material stamping process, then use adamas rotary polish, high temperature resistance vacuum aluminum plating film, finally finish high efficient and stable reflector, its visible light reflectance could reach over 95%.
2. Luminophor micromotion device, which could change the micro distance between luminophor and reflector, so as to change the focus point of reflected light, satisfy different customers’ different needs of highlight focus.
3. This lamp box is totally closed high strength light source supply design, which could reduce ozone release in the least, at the same time we design nitrogen charge valve, which could increase ozone and nitrogen reaction, so as to control ozone release more accurate.
4. Unique design of luminophor adapter, one type illuminophor with different power could be use compatible. The illuminophor is designed as market common standard, so you could choose consumables succedaneum flexible.
5. TOPT-X advantages are economic, sustained, practical, high efficient and advance design, its wide application are: optical laboratory high efficient & stable light source supply and convert, photochemical reaction, optical imaging system, etc.
More xenon lamp customize please contact info@toption-china.com for professional & free consult.
-
-
-

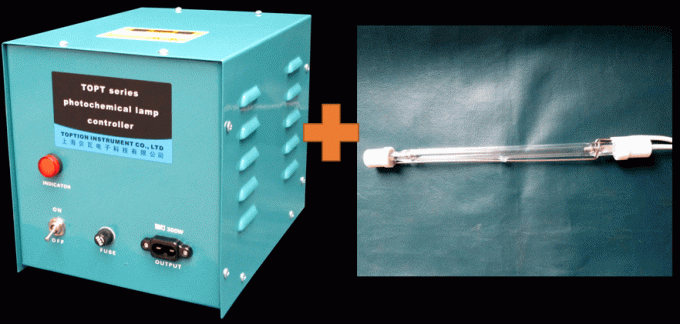

Long Arc UV lamp source
Long arc UV lamp and a controller for the laboratory and industrial test of the common light source, exclusive of ultra-stable kernel, stable performance, rich achievements in scientific research, accept customization of products!
- Technical parameters of long arc UV lamp source
Long Arc UV Lamp Source & Controller (standard type) Model TOPL-UV70/ TOPL-UV100/TOPL-UV 150/TOPL-UV250 TOPL-UV300/TOPL-UV500/TOPL-UV1000/TOPL-UV1500/TOPL-UV2000

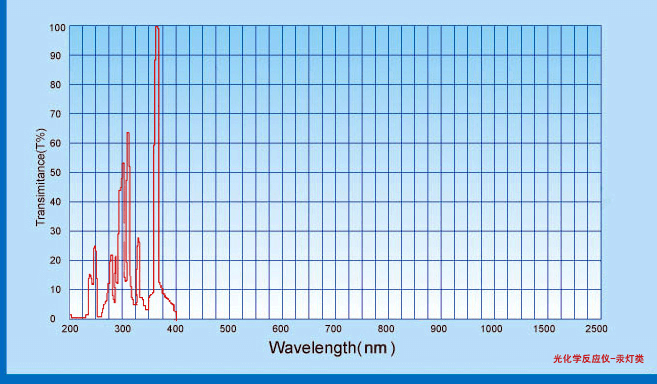

Power 70W,100W,150W,250W,300W,500W,1000W,1500W,2000W Simulative light source UV-light Unique Features Super stable kernel, operating interface is simple and easy Starting voltage High voltage / low tension (optional) Main peak wavelength range 185NM,254NM,280NM,313NM,334NM,365NM,full-wave band etc Application Inside-illuminated photochemical reactor / match with reflector could do outside-illuminated reaction Suitable capacity 200ML,250ML,500ML,1000ML,2000ML,5000ML(Optional) Lamp tube down-lead Single-ended / double-ended Special request Could equipped with light filtering liquid ,optical filter Power source 220V Note:TOPTION provide LCD touch screen software control operating function. - Application of long arc UV lamp source
1.Long arc UV lamp were used to visible light of photochemistry, photocatalysis, light degradation of pollutants and photochemical synthesis research field on the stage of exploration. The light source is flexible and can be used for a long time.
2. Note: This type Long Arc UV Lamp Source could be matched with TOPT-II, TOPT-V series photochemical reactor.
-
