Handheld Ultrasonic Emulsifier Equipment General Laboratory Equipment
Detail Information Place of Origin China Brand Name TOPTION Certifications: CE, UL, CSA, IVD Dimensions: 20.5 X 18.5 X 14.5 In Display: LCD Model: Heraeus Megafuge 16 Power…
Product Information
Detail Information
| Place of Origin | China |
|---|---|
| Brand Name | TOPTION |
| Certifications: | CE, UL, CSA, IVD |
| Dimensions: | 20.5 X 18.5 X 14.5 In |
| Display: | LCD |
| Model: | Heraeus Megafuge 16 |
| Power Requirements: | 120V, 60Hz |
| Speed Range: | 200 – 15,000 Rpm |
| Temperature Range: | 10°C To 40°C |
| Timer: | 1 – 99 Minutes Or Continuous |
| Price: | Negotiable |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, |
| Highlight: | Ultrasonic Emulsifier Equipment , Ultrasonic Emulsifier General Laboratory Equipment , Handheld Ultrasonic Emulsifier Equipment |
-
-

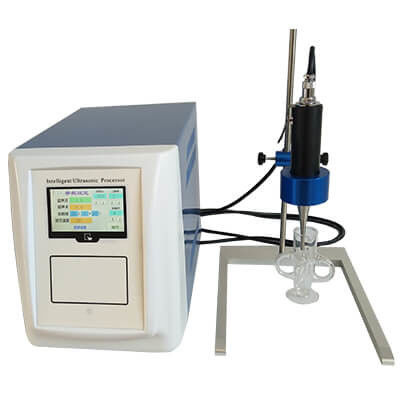

Ultrasonic Emulsifier Equipment
TOPTION handheld ultrasonic cell crusher add automatic or manual operation working mode ( foot switch is optional ).
Ultrasonic power could be continuously adjustable with 1% precision, transducer has small size and light weight, you could hold it in hand to do micro sample research, also could put it on fixed support.
Technical parameters of TOPTION UP Series Ultrasonic Cell Disruption:
Model UP-250 UP-400 Frequency (KHz)
20-30KHz Automatic tracking 20-30KHz Automatic tracking Power(W) 2.5-250W adjustable 5-400W adjustable Horn (mm) Φ3 or Φ5 Φ6 Optional Horn (mm) Φ2,Φ3,Φ6 Φ2,Φ3,Φ5,Φ8 Crush Capacity (ml)
0.1-150 0.1-300 Temperature alarm range 0-100 ℃ Instrument protection function Over-temperature Foot switch Optional Display 4.3 inch TFT
-
-
-
No-contact Ultrasonic Cell Lysis
TOPTION TUN-R series ultrasonic cell crusher is used for asepsis crush, it could through centrifuge tube to break chromosome and crush cell ( suitable for biology dangerous products and harmful sample ), equipped with silencer hold-down device.
Compared with traditional probe ultrasonic cell crusher, traditional cell crusher’s probe need to contact with sample directly, need to use one same probe again and again, which is easy to cause sample cross pollution. And also as every time the depth of probe insert sample is not same, so each time ultrasonic energy distribution is not uniform,finally effect the repeatability and precision of research result.
For TUN-R series ultrasonic cell crusher, don’t need operate probe frequently, each sample is put in total closed individual test tube, ultrasonic energy distribution is uniform, high efficient experiment, reliable test result, excellent repeatability.
As all these advantages, TUN-R series ultrasonic cell crusher already become the standard instrument for ChIP ( chromatin co-immunoprecipitation ) and blood products, vaccine products, DNA shear research institution.
- No-contact ultrasonic cell crusher
- Ultrasonic processors
- Ultrasonic homogenizer customize
Technical parameters of this no-contact type ultrasonic homogenizing and blending:
Model TUN-R1200 TUN-R2200 TUN-R3200 Frequency(KHz) 19.5-20.5KHz Automatic tracking Power(W) 20-1200W adjustable 100-2200W adjustable 500-3200W adjustable Horn (mm) Φ20 Φ60 Φ70 Standard crush capacity at a time (ml) 1.5ml or 2ml *4 hole 1.5ml or 2ml*16 hole 1.5ml of 2ml*32 hole Centrifugal pipe support optional (ml) 0.2ml*8 hole or 0.5ml*6 hole or 5ml*3 hole 0.5ml*18 hole or 5ml*18 hole or 15ml*15 hole or 50ml*5 hole 0.5ml*48 hole or 5ml*18 hole or 15ml*15 hole or 50ml*5 hole or 250ml*1hole Constant temp. Range ℃ 0-100 degree centigrade ( Low temperature circulators & constant temperature circulators are optional) Store data 20 sets Display 4.3 inch TFT Large power no-contact type ultrasonic cell crusher:
-
-
-
Ultrasonic Material Emulsifying Dispenser
TOPTION this type ultrasonic material emulsifying dispenser is most suitable to disperse nanometer materials (such as carbon nano tube, graphene, silicon dioxide).
- laboratory ultrasonic cell crusher
- Ultrasonic processor
Technical parameters of TOPTION this type 4.3 inch touch screen ultrasonic material disperse machine:
Model TUE-500 TUE-1000 TUE-1500 TUE-3000 Frequency (KHz) 20-30KHz Automatic tracking
20-25KHz Automatic tracking
19.5-20.5KHz Automatic tracking
19.5-20.5KHz Automatic tracking
Power (W) 5-500W adjustable 10-1000W adjustable 20-1500W adjustable 1000-3000W adjustable Horn (mm) Φ6 Φ10 Φ20 or 22 Φ40(mm) lengthened type Optional Horn (mm) Φ2,Φ3,Φ8,Φ10 Φ6,Φ8,Φ10,Φ12,Φ15 Φ10,Φ15,Φ25 Φ20,Φ35,Φ40 lengthened type, Φ50(mm) Crush capacity (ml) 0.2-400 10-600 50-1500 500-5000 Instrument protection function Over-temperature protection Over-temperature protection Over-temperature, protection Over-temperature, protection Display 4.3 inch TFT 4.3 inch TFT 4.3 inch TFT 4.3 inch TFT
-
