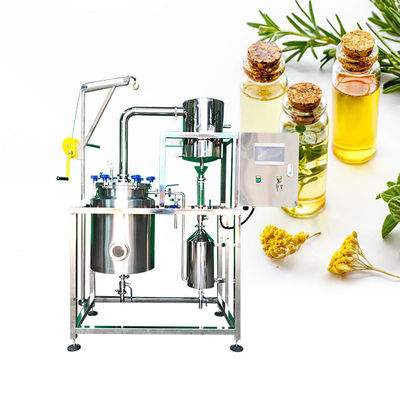

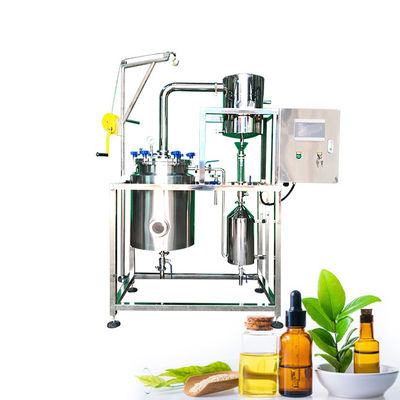

Essential oil extracting machine uses distillation technology and chemical separation, which can extract plant components efficiently by steam distillation, and have a good effect in collecting essential oil from plants, flowers, leaves, and wood, such as rose, lavender, eucalyptus leaves, lemongrass citronella, sandalwood, etc.

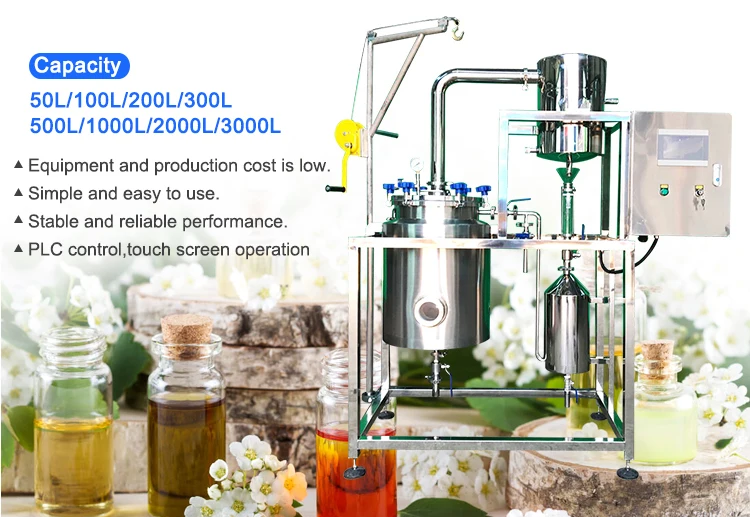

Volume
50L
100L
200L
300L
Voltage
380V,50HZ (It can also be three-phase 480V, less than 16KW and below, can be three-phase 220V)
Power (Kw)
7.5
12
16
24
Jacketed layer pressure (Mpa)
0.3
Pressure in tank (Mpa)
0.09
Extraction temperature (Celsius)
≤100
Heating area (m2)
0.72
0.98
1.38
1.65
Lifting method
Manual lifting
Control System
PLC control, touch screen operation
Cooling Tower
20T
30T

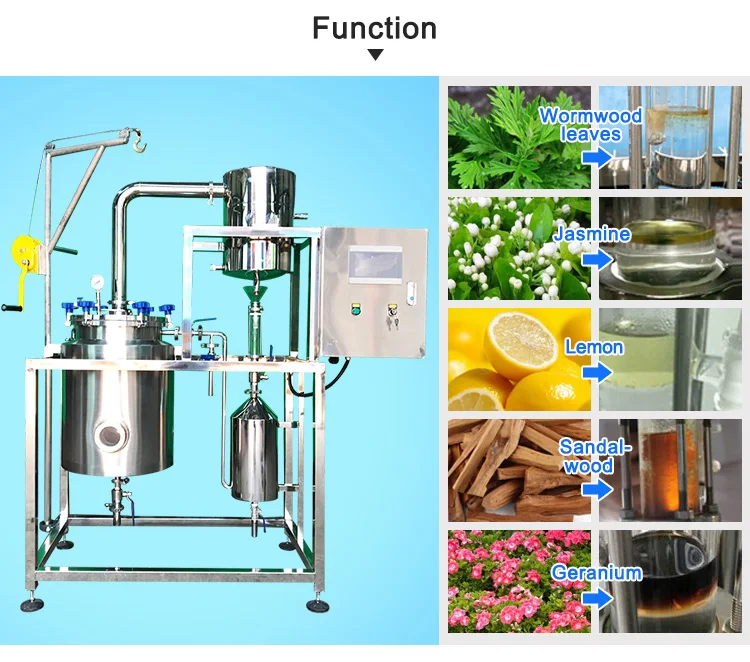

Function

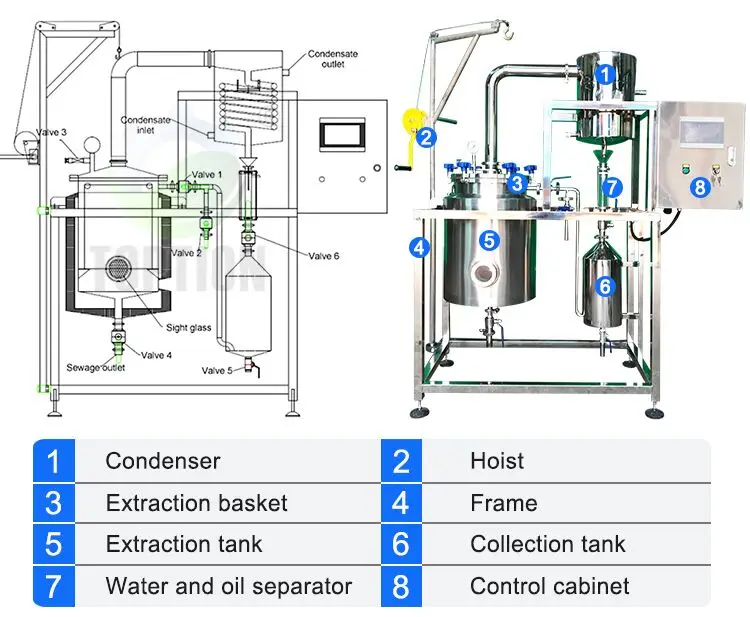

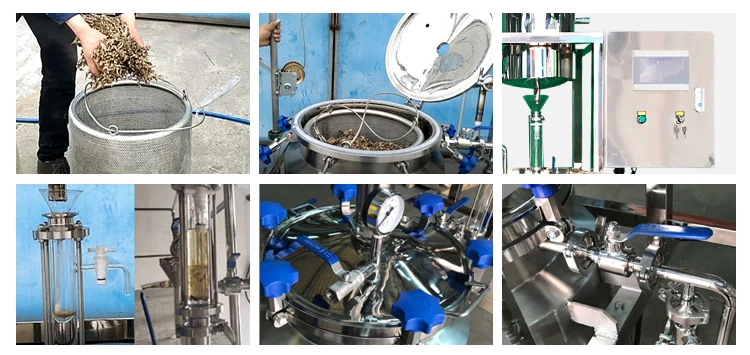

Product details
1.Stainless steel extraction basket, corrosion resistant & easy to clean
2.Crane system to ensure easier operation and less labor, automatic lifting is optional.
3. Automatic control, operation is simple and flexible, and one person can easily complete the entire production.
4.Lab grade glass pipeline diameter < 20mm, special-structured oil-water separator is used to facilitate the separation and collection of essential oils.
5.The lid of extraction tank is quick-opening design, easy to open & close lock.
6.Ball valve design, continuous operation 7.Lab - pilot - industry customization with greatest flexibility

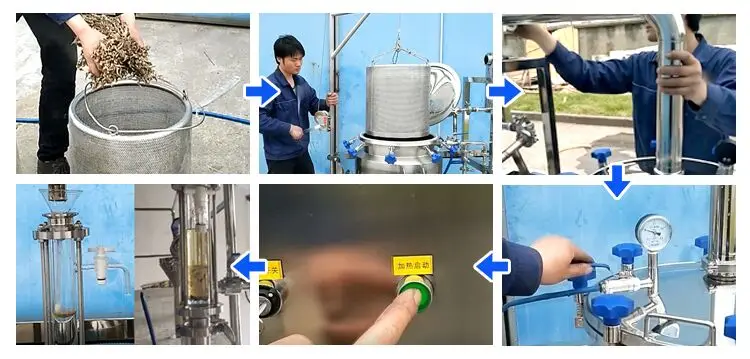

Production process
1.Charging plant materials + water into essential oil extracting tank.
2. By steam distillation or water distillation, the steam passes through plant material and vapourises oil.
3.Mixtures of steam and oil vapors go into condenser ( chilling unit ).
4.After cooling, mixture of steam and oil vapours formed.
