Centrifugal Spray Dryer Electric Heat Source For Powder 100Kg
Detail Information Brand Name TOPTION Application: Drying Of Liquid Materials Material: SUS304 Capacity: 5L-200L Heating Method: Electric/Steam Substrate: Stainless Steel Plate Heat Source: Electric Spray Nozzle: High Speed…
Product Information
Detail Information
| Brand Name | TOPTION |
|---|---|
| Application: | Drying Of Liquid Materials |
| Material: | SUS304 |
| Capacity: | 5L-200L |
| Heating Method: | Electric/Steam |
| Substrate: | Stainless Steel Plate |
| Heat Source: | Electric |
| Spray Nozzle: | High Speed Rotary |
| Volume: | 50L To 4000L |
| Atomizer: | Centrifugal Spray |
| Voltage: | 220V, 380V Or Other |
| Highlight: | Spray Dryer For Powder , Centrifugal Spray Dryer , 100Kg Spray Dryer |
Product Description
Photo Presentation

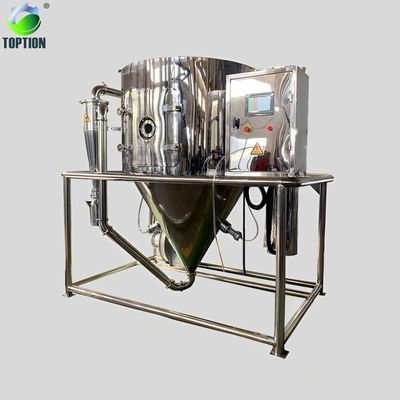

Centrifugal Spray Dryer
Centrifugal spray dryer is a kind of continuous ambient pressure dryer. The liquid material is sprayed into the mist with special equipment so that it is dried in contact with hot air. The dryer is used to dry some heat-sensitive liquids, suspensions, and viscous liquids such as milk and eggs. It is also used for drying fuels, intermediates, soap powders, and inorganic salts.
High Speed Centrifugal Spray Drying
High speed centrifugal spray drying is the most widely used process in the liquid process forming and drying industry. It is best suited for generating powdered and granular solid products from solutions, emulsions, suspensions and pasty liquid raw materials. Spray drying is therefore an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet precise criteria.
| Model | TP-S15 | TP-S30 | TP-S50 | TP-S100 |
| Max capacity | 1500-2000 ml/h | 3000 ml/h | 5000 ml/h | 10000 ml/h |
| Temperature range of inlet air | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 140°C ~ 300°C | 50°C ~ 300°C |
| Temperature range of outlet air | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C |
| Spray system | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle |
| Precision of temp | ±1 ℃ | |||
| Dryer time | 1.0 ~ 1.5 S | |||
| Speed of squirt pump | 50 ~ 2000 | 3000 | 5000 | 10000 |
| Nozzle size | 0.5/0.7/0.75/1.0/1.5/2.0mm | |||
| Spray direction | Downwards co-current | |||
| Heater Power | 3KW 220V | |||
| Total power | 10KW 380V | |||
| Heat source | Electric | |||
Suitable for
Application: Liquid/Powder like Milk, Coconut, Coffee, Ceramic, Plant Extract, etc. of Chemicals Processing and Food Processing.
Food industry: enriched milk powder, aronia, cocoa milk powder, milk replacing powder, pig blood powder, animal blood powder, egg white powder, egg yolk powder, whole egg powder, etc.
Food and plants: oats, chicken juice, coffee, instant tea, flavored spices meat, protein, soybean, peanut protein, hydrolysate, etc.
Sugars: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Ceramics: alumina, tile materials, magnesium oxide, talcum powder, etc.
Chemical industry: sodium fluoride, potassium, battery raw materials, alkaline dyes and pigments, dye centers, compound
fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid agents, amino acids, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, polyethylene, polyvinyl chloride, urea-formaldehyde resins, etc.
Features
1. Fast drying speed. After the material is atomized, the surface area is greatly increased. Therefore, in the hot air stream, excess water can be evaporated instantly. It takes only a few seconds to complete the drying, which is especially suitable for the drying of heat-sensitive materials.
2. The product has good homogeneity, fluidity, solubility, high purity and good quality.
3. The production process is simplified and the operation control is convenient. For the wet content of 40-60% of the liquid, can be dried into powder products once. After drying without crushing and screening, so it can reducing the production process and improve product purity. For the product particle size, bulk density and moisture in a certain range can be adjusted by changing the operating conditions, so the control
and management of this dryer are very convenient.
and management of this dryer are very convenient.
Centrifugal Spray Dryer Equipment Operating Principle
The air is filtered and heated and enters into the air distributor at the top of the dryer, and the hot air enters into the drying chamber in a spiral shape uniformly. The material liquid is sprayed into very fine mist liquid globules by the high-speed centrifugal atomizer at the top of the tower, which is in contact with the hot air in parallel flow, and can be dried into finished products in a very short time. The finished products are continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is exhausted by the fan.
