5L Glass Reactor Jacketed Double Layer Glass Reactor For Lab

5L Glass Reactor Jacketed Double Layer Glass Reactor For Lab

Detail Information
Brand Name
TOPTION
Stirring Shaft:
PTFE Coated
Reactor Vessel Type:
Jacketed Or Lined
Inlet/Outlet Ports:
Standard Or Customized
Temperature Range:
-80°C To 200°C
Support Structure:
Stainless Steel Frame
Applications:
Chemical Synthesis, Crystallization, Polymerization, Etc.
Material:
Glass And Stainless Steel
Highlight:

Jacketed Glass Reactor

,

Double Layer Glass Reactor

,

5L Glass Reactor

Product Description

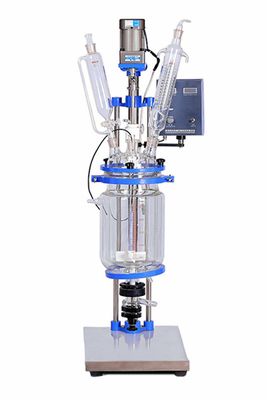

5L Double Layer Glass Reactor for Lab


The Glass Reactor can stir and react under the sealed reactor's natural or negative pressure. The stirring of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate. The reactor is the ideal instrument for experiments in modern chemistry, biochemical, pharmacy, and the advanced synthetic.



glass reactor




·Borosilicate glass, good chemical and physical properties.


·AC induction motor, Digital display of mixing speed, frequency ·conversion, and constant speed mixing system, brushless, no spark, safe and stable.


·Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.


·PTFE discharge valve can discharge materials thoroughly and quickly.


·It can work under pressure and vacuum conditions, under a vacuum of about 0.098MPa up to the stationary state.


·The whole structure is novelty, practical and beautiful.



jacked glass reactor

Superb Craftsmanship-Speed Governing


Stepless speed regulation is adopted with adjustable speed and real-time speed display. It is equipped with an overload protection function to avoid material being sticky, resulting in an overload of control.


5L Glass Reactor Jacketed Double Layer Glass Reactor For Lab 2

Superb Craftsmanship- Dropping Funnel


The spherical condenser has fast cooling. The function of the drop funnel is drop add, which also adds material in a vacuum state, which is convenient and quick, saving time and effort.

glass reactor



Superb Craftsmanship- Stirring Device



The mixing bar is made of stainless steel 304 and the mixing bar is sheathed with Teflon skin to prevent the acid and alkali material from corrosion.

5L Glass Reactor Jacketed Double Layer Glass Reactor For Lab 4


A cutting-edge, jacketed double-layer reactor designed for precise lab experiments. Elevate your research with advanced control and observation capabilities. Contact us at info@toptionlab.com to inquire about purchasing this essential tool for your laboratory today!
