Ultrasonic continuous glass reactors on powder material in liquid phase of crushed, dispersed, and mixed are used of is mechanical mixing, its processing time and process will very long, especially for a diameter is less than 10um of solid particles in the liquid in the of dispersed, for solid particles in mixing process in the of mixed rate and the quality transfer rate is has been reached limit value and into constants, at even again increased mixing of speed, its reaction also not has improved. Ultrasonic reactors is use ultrasonic dispersion, grinding, and activation, such as multiple effects, which can damage the solvent structure and improve reactivity, dispersing, and grinding particles, so that its diameter decreases further.
Model
TOPT-80L
TOPT-100L
TOPT-150L
TOPT-200L
Reaction bottle capacity
80L
100L
150L
200L
Jacketed Capacity
24L
30L
35L
40L
Reaction bottle cover flange
340
340
340
340/440 PP flange
Inner diameter of reactor body
410
460
550
550
Stirring speed (rpm)
0-600 (customizable)
0-600 (customizable)
0-600 (customizable)
0-600 (customizable)
Condenser
DN40 ball mouth
DN40 ball mouth
DN40 ball mouth
DN50 ball mouth
Stirring power
250W
250W
400W
400W
Dimension(mm)
820*820*1950
2400*820*890
2400*890*1000
2600*1050*1110
Packing weight(KG)
150
165
195
450
Product details

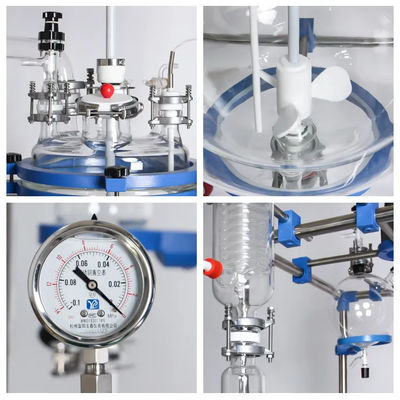

1. Use a PTFE composite seal, it can maintain high vacuum degree.
2. Use efficient condenser to ensure high recovery rate.

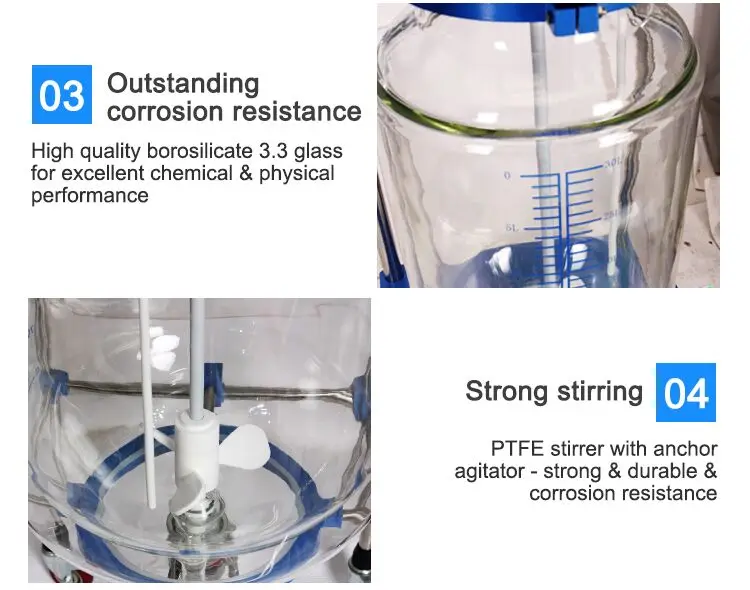

3. The complete set of glass use GG17 high borosilicate glass with good chemical and physical properties.

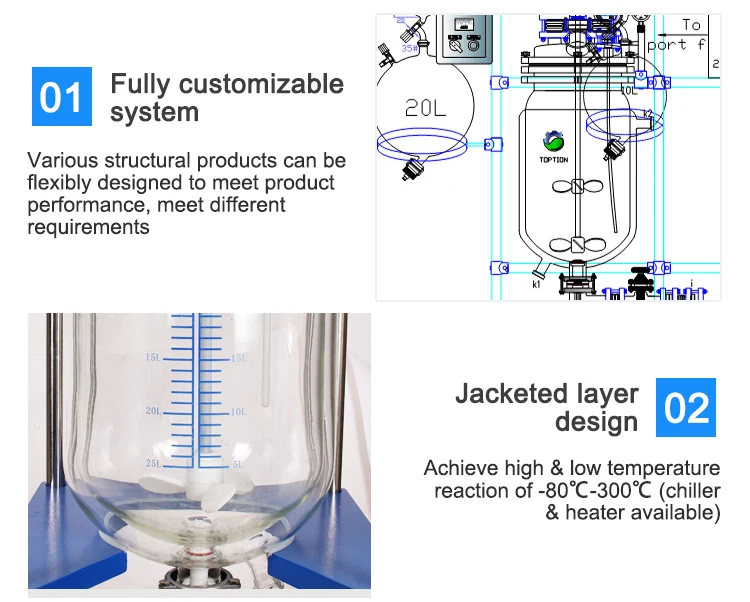

4. The glass inter layer interface is added with hot oil, through the loop, it can do reaction under the condition of high temperature; the glass inter layer interface added with cooling fluid can carry on reaction under the condition of low-temperature.
5. It can be added with tap water to quickly take away reaction heat.
6. Discharged material has flanged opening and PTFE valve, without dead angle inside the container, it can be demounted to facilitate the discharge of solid materials.
7. Digital mixing motor, frequency conversion control, matched with a torque increasing of reducer.
8. Reasonable structure and selected materials. The mechanical components use stainless steel and aluminum-alloy pieces, the glass pieces use high borosilicate glass with high temperature resistance and good chemical properties. Electrical components parts: the main components use original imported devices.

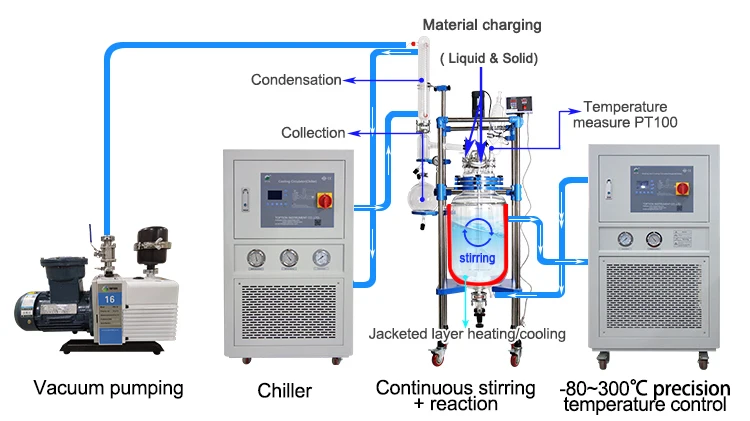

product process
1.Material charging
2.Vacuum pumping
3.Stirring + adjusting temperature ( heater & chiller )
