| MOQ: | 1 |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

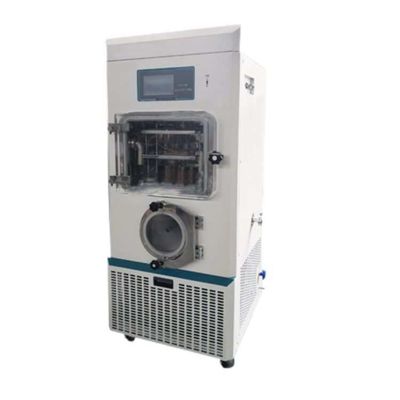

TPV-20G/30G/50G/100G Freeze Dryer for Automation and Prevention of Sample Pollution, is ideal for food, pharmaceutical, and laboratory applications, offering efficient and precise freeze-drying technology. High-quality products with minimal contamination and optimal shelf life.
Main parameters of TPV-20G freeze dryer
| Freeze dryer | Item | TPV-20G |
| Drying Chamber | Freeze-drying area | 0.2m² |
| Layers of shelf | 2+1 | |
| Temperature scope of shelf | -55℃-+70℃(no-load) | |
| Shelf temperature error | ±1℃ (in balance) | |
| Shelf spacing | 100mm | |
| Size of shelf | 270*400mm | |
| Condenser | Min. Temperature of condenser | <-75℃ (no-load) |
| Water-capture capability | >6Kg | |
| Liquid material | 2L(material thickness 10mm) | |
| Defrosting | Electric defrosting | |
| Final Vacuum degree | ≤1Pa | |
| Style of cooling | Fan cooling |
Main functions: Equipped with hydraulic stoppering device, Manual +Auto Control Mode, Sensor calibration, Vacuum control, Freeze drying termination reminding functions are available.
◆TPV-20G/30G/50G/100G (silicon oil heating)freeze dryer, freezing and drying process made in situ
◆lt changes the complex operation to prevent sample pollution, and make drying automation. These models have shelf heating and programmable functions.
◆They can record freeze-drying curves, and data can be output by U-disk. Users can view the freeze-drying process.
◆Heating and cooling rates reach 1C/minute, matching industrial freeze dryers.
◆High-quality stainless steel construction for contact surfaces with easy-to-clean internal components.
◆The top shelf layer acts as a heat radiation layer to ensure uniform heating.
◆Patented technology for shelves and the cold trap ensures uniform drying, supported by a stable and user-friendly control system.
◆Utilizes the same PLC system as industrial freeze dryers, offering precise process control and repeatability.
◆Capable of designing, loading, and storing real-time process programs, recording freeze-drying processes generating curves, reports, historical data, and alarms.
◆In-situ vacuum freeze dryer with automated process.
◆Dual-chamber design: freeze trap and drying chamber.
◆Tool-free maintenance access.
◆Each layer has an independent sample temperature probe.
◆Rapid freeze trap cooling: -40℃in<20mins.
◆Adjustable sublimation curve control.
◆Precise tray temperature control(±1℃/±0.5℃).
◆PLC with PID regulation.
◆Nitrogen gas for inert drying.
◆Maintenance reminders and safety protections.
TOPTION offers a range of benefits to customers, including access to high-quality equipment and expert knowledge. Can ensure getting a reliable and efficient freeze dryer that meets their specific needs. Not only do merchants often provide excellent customer service, including installation, maintenance, and repair support, which can be invaluable for those new to freeze drying, but they also offer a range of benefits that can help alleviate any concerns about investing in a freeze dryer. In addition, they can provide competitive pricing, which can make a significant difference in the overall cost. Furthermore, many merchants offer flexible financing options, allowing customers to spread the cost over time. Moreover, they often include warranties, giving customers peace of mind and protecting their investment. As a result, customers can invest in a freeze dryer and start preserving their products with confidence.
|
|
