1 – Fill Biomass
Load Extraction Vessel with biomass.
2 – Pressurize with CO2
Bring each vessel to working pressure using CO2 from supply cylinders.
3 – Run in Closed Loop
In Extraction Vessel, compounds are pulled from biomass into solution. Solvent (CO2) is boiled out of solution in Separator 1
Evaporated CO2 is condensed into liquid and stored in an Accumulator.
4 – Periodically Sample Extract
Open the valve on the Oil Integrity Cup to collect extraction samples. No need to remove the Integrity Cup.
5 – Depressurize
After the allotted run time, the system is depressurized by releasing CO2 through Separator 2.
6 – Collect Extract
Extract collected from the Oil Integrity Cup.

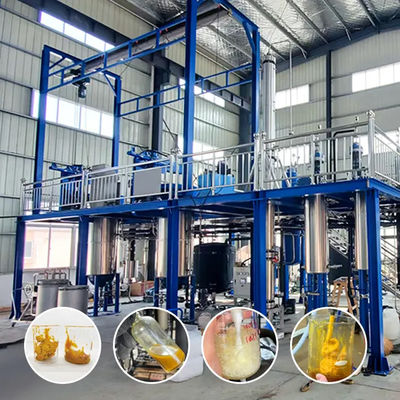

TOPTION brand Supercritical Fluid Extraction Machine is also named Essence Extraction Machine, which is used for the extraction of material (solid or liquid) under high pressure and suitable temperature extraction.
Changing conditions in the separation kettle will resolve the dissolved substances in order to achieve the purpose of separation.
Supercritical CO2 extraction equipment includes several parts:
The Supercritical CO2 extraction is especially suitable for extraction of fat-soluble and heat sensitive substances with high boiling points. Take CO2 as the solvent to make extraction and purification of a lot of products such as biological products, foodstuff and medicines.
1) Intermittent or continuous work,co-solvent can be added if request.
2) CO2 can be recovered and reused.
3) Pressure and temperature can be designed according to demand.
4) Can custom made into PLC or computer control.
TOPTION Supercritical CO2 Fluid Extraction system is a cutting-edge technology that utilizes the power of carbon dioxide to extract valuable compounds from a wide range of plant materials. This eco-friendly and sustainable process ensures the highest quality extracts with unparalleled purity and potency.
If you're interested in learning more about our Supercritical CO2 Fluid Extraction system or would like to place an order, please contact us at info@toptionlab.com. We look forward to working with you!
|
|
